F&J - Model LV-22E -Environmental Low Volume Air Sampler (220 - 240 VAC)

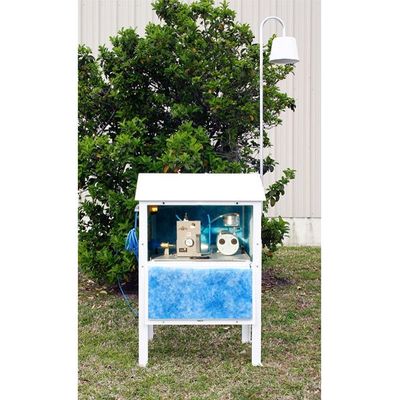

Model LV-22E is a low volume air sampler consisting of a 1/4 HP oil-less, carbon vane vacuum pump with an air flow regulator for use where a nearly constant air flow is desirable. The regulator holds a constant pressure drop across an in-line orifice by varying the flow through a bypass valve into the pump. This system allows the pump to work at a minimum pressure drop at all times permitting it to run cooler; thus extending its service life. The oil-less pump requires no lubrication to maintain optimal efficiency during its service life. The LV-22E is enclosed in a weather resistant aluminum environmental cabinet, Model WH-3. An optional mechanical volume totalizer is available.
It should be noted that as pressure varies, the flow through an orifice with a constant pressure drop varies approximately as the square root of the ratio of the absolute pressure. Thus, if paper loading causes a pressure drop to one-half of the original value, the orifice is adjustable, allowing a flow rate adjustment from near-zero up to the pump’s maximum capacity. Best long-term regulation is maintained at or below 2 cubic feet per minute (57 liters per minute).
The typical operating flow range is 1 to 3 CFM (10 – 100 LPM).
- Constant air flow regulator adjustable by user
- Powder coat painted aluminum enclosure with cooling fan
- Durable oil-less carbon vane pump designed for continuous use
- Internal intake and exhaust mufflers
- Rotometer, elapsed time meter and vacuum gauge
- 220– 240VAC, 50/60Hz; single phase
- PUMP TYPE: Oil-less, carbon vane 1/4 HP; 1425 RPM @ 50 Hz
- MAXIMUM CAPACITY: 4 CFM (113 LPM) at 0" Hg Pressure drop.
- ULTIMATE VACUUM: 25" (635 mm) Hg at sea level.
- VACUUM GAUGE: 0" - 30" (0 to 762 mm) Hg.
- POWER REQUIREMENTS: 220 – 240VAC; 50/60Hz at 3 amperes; single phase
- FUSE PROTECTION: 6-1/4 Amperes
- ELECTRICAL CORD: All temperature, 3 wire, 16 gauge
- THERMAL OVERLOAD PROTECTION: Furnished as an integral part of the motor.
- CONSTANT AIRFLOW REGULATOR: Aluminum construction with silicone diaphragm; adjustable from 1 to 3 CFM (10- 100 LPM).
- DIMENSIONS (w/Legs): 81,3L × 65,0W × 122,6 cm H (32 “L x 26"W x 48¼"H)
- WEIGHT: 46,8 kg (103 lbs.)
- INSTALLATION CATEGORY: Pollution Degree 3
- ENCLOSURE RATING: IPX3
- AVAILABLE ROTOMETER SCALES:
- MODEL:RANGE
- R10100 10-100 LPM
- R13 1 - 3 CFM
- OPTIONS:
- Mechanical Volume Totalizer; Metric or English units
- DLM100-04 Digital Electronic Monitor
- COMBINATION FILTER HOLDER:
- Durable plastic combination filter holders for F&J Model B, C or M charcoal cartridges and 47 mm, 2” or 50 mm diameter particulate filter paper are available. All models have quick disconnect function
