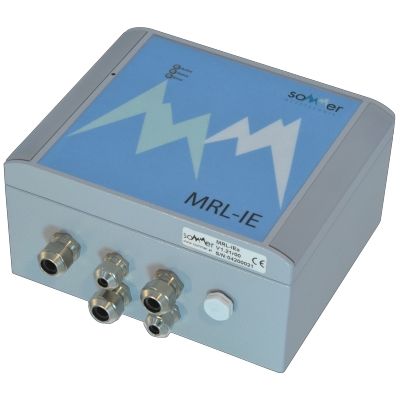

Sommer - Model MRL-IE -Environmental Sensor Analog Data Acquisition
The MRL-IE is a compact data acquisition module designed to acquire, process and transmit all sorts of environmental data.It is compatible with all sensors offered by SOMMER Messtechnik and numerous third-party devices equipped with analogor SDI-12 interfaces. The MRL-IE extends the input ports of MRL data loggers and offers conversion between RS-485 and SDI-12 signals. The MRL- IE a is equipped with an additional analog output board that adds multiple analog, pulse and digital switch outputs.
Most popular related searches
signal conversion
discharge protection
data logger
wind vane
environmental sensor
sensor data acquisition
environmental data acquisition
sensor data
flow meter
telemetry
- MRL-IE
- MRL-IEa with additional analog and digital output board
- 8 analog inputs individually configurable
- Signal conversion from analog to SDI-12, RS485 and Modbus RTU
- Signal conversion from SDI-12 to RS485 and Modbus RTU
- Parallel SDI-12, Modbus RTU and analog output
- Acquisition of up to 99 variables
- Multiple sensor voltage supplies
Additionally with MRL-IEa
- Signal conversion from SDI-12 and RS485 to analog
- Impuls output of acquired quantities, e.g. for flowmeters
- Parallel SDI-12, Modbus RTU, analog and impuls output
- Power supply 9...28 VDC; Overvoltage and reverse voltage protection, deep-discharge protected if used with optional battery
- Power consumption min. 0.65 mA @ 12V
- Sensor supply
- 500 mA @ 5 V
- 500 mA @ 12/14 V
- 500 mA @ switched supply voltage
- Referenced sensor supply
- 200 mA @ 2.5 V
- 100 mA @ 2.5 V (wind vane reference)
- Inputs
- 8x Analog 0...2.5 V / 4...20 mA / Resistance;16 bit resolution (internal 100 Ω-shunts)
- 1x Counter (max. 25 Hz @ 50% duty cycle)
- 1x Wind speed (frequency)
- 1x Wind direction (potentiometer)
- 1x RS-485
- 1x SDI-12 as primary/master (version 1.3)
- All analog inputs are equipped with overvoltage fine protection up to 36 V
- Outputs
- 1x RS-485 (9600...115200 Baud), ModbusRTU
- 1x SDI-12 as secondary/slave (version 1.3)
- Additionally with MRL-IEa
- 4x Analog current output
- 6x Switched output @ supply voltage (can be used as pulse output by adding a pulldown resistor)
- Number of recorded variables max. 99
- Measurement interval 2 s … 12 h
- Statistics interval 10 s … 12 h
- Operating temperature -40…60 °C (-40…140 °F)
- Storage temperature -40…60 °C (-40…140 °F)
- Protection rating IP67
- Lightning protection Integrated protection against indirect lightning with a discharge capacity of 6 kAPpp
- Housing material Aluminium, powder coated
- Size L x W x H 180 x 150 x 90 mm (7.09 x 5.91 x 3.54 inch)
- Weight 1.48 kg (3.26 lb)
