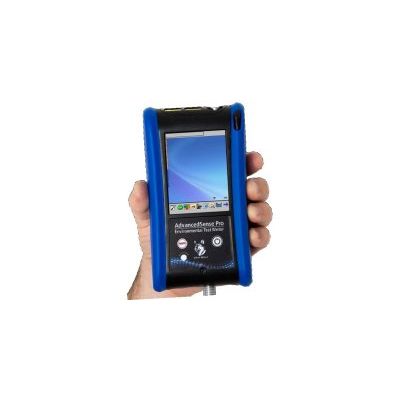

AdvancedSense - Model Pro -Environmental Test Meter Plus

• Simultaneously connect 1 or 2 GrayWolf DirectSense probes with up to 6 sensors per probe (up to 4 probes with Y-adapters) plus a particulate or HCHO meter
• Available sensors; differential pressure, airspeed, TVOCs, CO2, %RH, ºC/ºF, CO, O3, NH3, H2S, NO, NO2, SO2, Cl2, HCN, HF, HCl, F2, HCHO and other parameters
• 2 thermocouple sockets (standard) for air, liquid, surface temperature measurement
• Backlit color touch screen with virtual keyboard (for text input such as descriptive data file names)
• WiFi for emailing data, live updates and optional GrayWolfLive remote data access
• Feature rich with productivity tools that make your environmental surveys more efficient, more detailed, more reliable:
• Built-in 2MP camera for photos/videos that attach to data (with annotation)
• Microphone for audio documentation of surveys
• Text notes, field (Word template) notes, event notes etc. auto-attach to data
• Speaker for audible queues, alarms and more
• On-board educational info, application docs, help videos, sensor tips and more
• Data transfer & reporting software for trend graphs, note management and much more
• Highly intuitive and extremely Easy-To-Use

General:

• Dimensions: 96.0mm (3.8in.) w. x 177mm (7.0in.) h. x 47.0mm (1.8in) d.
• Construction: Rugged polycarbonate plastic with rubberized side grips. IP64
• Weight: 700gr (1lb 8.5oz.) Add 50gr (1.5oz.) for auto-zeroing ∆P option
• Screen Size: 3.5” HVGA 320 x 480 color touch screen with backlight
• Memory: 32GB for data-logging (millions of readings) and notes (photo/video/audio), help videos, documents and WolfSafe™ auto-data backup
• Camera/LED: Integral 2MP photo/video camera and 17cd LED illuminating/inspection light
• Wireless Network: WiFi 802.11 a/b/g with integrated antenna and Bluetooth 4.0 standard (may optionally be ordered with wireless hardware removed)
• Audio: Integral electret microphone (on front, for audio recording) and 8 ohm speaker (on back, for audio queues, help videos and audio note replay)
• Mounting: ¼" - 20 thread (on back) for belt clip, etc. (& for included mini tripod/stand)
• Operating Range: -10ºC to 50ºC (15ºF to 122ºF), 0 to 100 %RH non-condensing

Connectors:

• 2 x Lemo 8F pin for GrayWolf DirectSense probes (the AdvancedSense Pro will support up to 4 x DirectSense probes with Y-adapters)
• 1 x Lemo 7F pin for particulate meters or RH-AS2 direct-connect TRH probe
• 2 x sub-mini type K thermocouple temperature sockets. Range -80 to 1100ºC (-110 to 2010ºF)
• 1 x Lemo 7M pin for formaldehyde meter, borescope, external photo/thermal imaging camera or optional USB key download adapter cable
• 1 x USB mini B socket. 1m mini USB B to USB A download cable supplied as standard
• 1 x 12V, 2.1mm DC power socket
• Optional: 2 x 4mm posts for differential pressure tubing

Power:

• Battery: 4250 mAh Lithium Ion rechargeable
• Battery Life: 18+ hours typical for new battery with backlight off (and probes self-powering)
• The AdvancedSense Pro can power DirectSense probes. Battery life will vary when powering probes, pressure sensors or wireless.
• Recharge time: 4 hours typical. Red/green front LED displays charging/fully charged status
• Power supply: 100/240VAC, 50-60Hz external charger. Specify local plug
• All specifications are subject to change without further notice

Differential Pressure is auto-zeroing (every 2 minutes by default but zeroing frequency is user adjustable to 5 min. or OFF)

*The barometric pressure sensor, when installed, will compensate mass concentration readings (µg/m3) for pressure changes.
