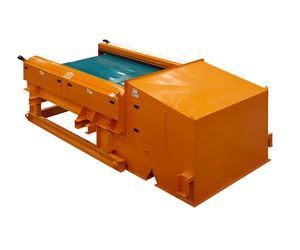

Eriez Eddy - Model RevX-E -Eddy Current Separators
Eriez’ RevX-E® Eddy Current Separators feature an eccentric magnetic rotor for separation of nonferrous metals. The unit is designed with an eccentrically mounted magnetic rotor within the non-conductive larger diameter shell. The eccentric rotor concentrates its eddy current forces into a zone of separation at the end of the belt. By focusing its field, this design ignores ferrous material in the flow.
Most popular related searches
eddy current separation
rare earth
non-ferrous metal
metal recycling
non-ferrous metal recycling
metal recovery
non-ferrous recycling
belt conveyor
magnetic separation
The eccentric rotor design reduces long-term wear due to heated ferrous build up.
RevX-E Eccentric Eddy Advantages:
- Cantilevered frame design for quick conveyor belt changes (10 minutes)
- Rack & pinion splitter adjustment for simple and precise splitter placement for optimum separation
- Large access panels all around the machine allows easy maintenance access
- Compact design requires less space
- Direct drive rotor and direct drive conveyor
Sizes Offered:
- 1.0M (40") wide
- 1.2M (48") wide
- 1.5M (60") wide
Rotors Offered:
- LT2 Rotor Assembly: 8 Pole Rare Earth Eccentric Rotor for coarse (+1") size fractions.
- ST22 Rotor Assembly: 22 Pole Rare Earth Eccentric Rotor for +1/4" to -1" size fractions.
