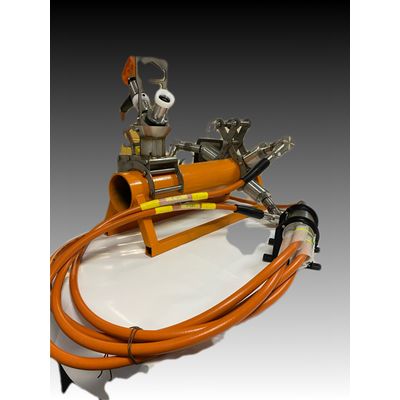

ESP Asset Integrity - Model ECHO EC-UW -Erosion-Corrosion Detector
The Echo-EC is an advanced erosion-corrosion detector that addresses significant industry challenges in oil and gas production systems. Utilizing acoustic sensors, the device employs a pulse-echo method to assess wall thickness, with configurations ranging from four to thirty-two sensors. These sensors provide real-time data, enabling integration with existing monitoring systems through SIIS Level 2 or Level 3 communication protocols. The detector's digital signal processing enhances data accuracy and resolution, assisting operators in preventive maintenance planning, optimization of corrosion inhibitors, pipeline lifespan analysis, and weld/HAZ monitoring. This non-intrusive instrument facilitates seamless installation in new or existing setups, allowing for improved corrosion management when used in conjunction with sand detectors to mitigate erosion. Its robust construction includes materials like titanium and duplex stainless steel, capable of enduring extreme operational conditions with a design life extending to 30 years.Most popular related searches
acoustic sensor
corrosion inhibition
subsea pipeline
pipeline monitoring
air monitoring
pipeline corrosion inhibitor
sensor system
acoustic detection
integrity monitoring
industrial gas
Erosion-corrosion has been rated in the top five most prevalent forms of corrosion damage in the oil and gas industry and defined as accelerated corrosion following the removal of surface films.
Erosion in oil and gas production systems is mainly due to the presence of sand along with liquid and gas. It is associated with production velocities and is the most severe when production velocities are high. Since erosion is caused by mechanical forces occurring on the metal surface, erosion can be difficult to control.
To address this industry problem ESP Safety has developed Echo-EC Erosion-Corrosion Detector. The Echo-EC monitors the condition of pipes and provide information about its erosion corrosion rate in various applications.
The ECHO-EC uses a group of acoustic sensors to detect wall thickness by pulse-echo method. The quantity of sensors in a system varies from 4 to 32 pcs. The output signals from Echo-EC acoustic sensors are transmitted directly to a control system for online data monitoring via SIIS Level 2 or SISS Level 3 communication protocols.
Being the next generation of smart instruments Echo uses advanced digital signal processing algorithms to provide reliable, high-resolution data to operator. This allows users to plan preventative measures, optimize use of corrosion inhibitors, calculate the remaining lifetime of pipeline, monitor weld/HAZ on pipe, verify and calibrate inspection pigs and provide information about critical areas between inspection surveys.
The Echo-EC non-intrusive device can be easily tied into any existing system or implemented into new pipeline installation.
ESP Safety’s erosion corrosion detector is recommended to be installed in combination with our sand detector to minimize sand intrusion (the main cause of erosion corrosion), detect early signs of corrosion and extend life of pipelines.
Electrical Specifications
Mechanical Specifications
Dimensions: Monitoring Module 14” x Ø 4.7” (348 mm x Ø120 mm) ECHO EC sensor 2’’ x 4’’ x 5’’ (50 mm x 95 mm x 125 mm)
Material: Titanium/UNS S31803/2205 Duplex SS
Weight in Air: Monitoring Module 22 kg/ ECHO EC Sensor 19 kg
ROV Handle Type: D-Handle as standard
(T-handle, Fishtail handle, O-handle available by request)
Coating: Xylan 1070
Interface Connector Type: Omnitec MKII, Tronic Connector, ODI Connector
Functional Specifications
Method of Operation: Passive acoustic
Flow Regime: Oil, Gas, Multiphase
Units of measurement: Wall loss (mm), corrosion rate (%)
Calibration: factory calibrated
Accuracy : ± 0.1 %
Repeatability: <1%
Pipe Size: > 4 inch OD (101.4 mm)
Coverage Area: 32 sq.ft (3 sq.m)
Wall Thickness: 3 – 50 mm (0.1 -2 inches)
Wall Material: Metal Alloys
Depth: 4,500 m (14,760 ft)
External Pressure: 30 MPa
Operating Temperature: -20C to +80C ( -76F to 185F)
Pipe Surface Temperature: -100C to +290C ( -148F to 554F)
Storage Temperature: -50C to +50C ( -58F to 122F)
Design Life: 30 years
