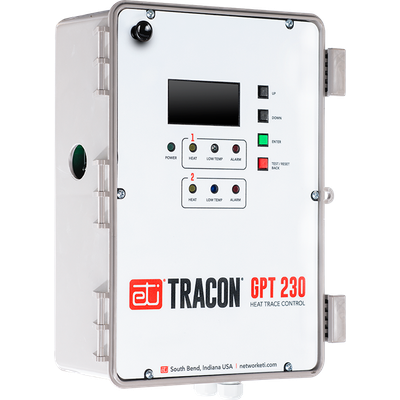

ETI - Model Tracon GPT 230 -Temperature Controller

FromEnvironmental Technology, Inc. (ETI)

The GPT 230 Dual Channel Temperature Controller is ideal for applications which required two independent heater zones. Each zone has it’s own relay and GFEP. Any 3 wire RTD or Thermistor sensor can be used for temperature sensing.

Most popular related searches

digital temperature controller

thermistor temperature sensor

fire protection system

temperature sensor

fire protection

RTD sensor

dual temperature controller

temperature indicator

setpoint temperature controller

fine-wire thermistor

Adjustable Temperature Setpoint and Alarms Sensor Inputs
Precision Monitoring and Control
Ground–Fault Equipment Protection
Automatic GFEP Circuit Self–Test

Dual channel heat trace capabilities allows for complete control and monitoring of two separate channels from one unit
Adjustable temperature setpoint allows precise control of a wide range of processes
Can use an NEC Class 2 temperature sensors with up to 2,000 ft. cable for enhanced installation options
Two Thermistor temperature sensors with 20 ft. cables included for applications of −40 °F to 230 °F (−40 °C to 110 °C)
RTD input allows higher accuracy and extreme–temperature applications
The unit can accommodate RTD sensors with 3–wire configuration
Temperature display for accurate adjusting and monitoring

Load current display for accurate adjusting and monitoring
Ground fault current display for accurate monitoring, protection, and alarm
Adjustable alarm thresholds for excess ground fault current, load current, and temperature
Alarms indicated with panel display and relay contact for remote signaling
A Fault Mode setting which can be set to energize or de-energize the heaters during a sensor failure
Fire Protection Mode maintains heater operation for use in critical fire protection systems
Durable weather–resistant NEMA 4X IP66 enclosure permits indoor or outdoor installation

ETI - Model Tracon GPT 230 -Temperature Controller

Product Details

Features
