Euromixers - Fixed Mount Mixers

Open Tank Models
Direct or gear drive mixers are expertly configured for your application. Open tank mixers are provided with a square baseplate or angle risers for mounting directly to support beams or a suitable structure over the tank, electric motors are IP55 and can be supplied with drip covers for use outdoors.

• Standard metric electric or pneumatic (dry or lubricated) motors
• Easy installation
• Low maintenance
• Full range of Impellers
• Shaft and impeller 316 stainless steel (other materials and shaft coatings available)
• Low headroom option available for tight spaces

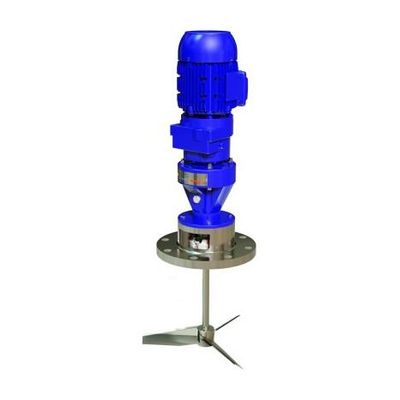

Closed Tank Model - Top or side entry
Direct or gear drive mixers are expertly configured for your application. Cbsed tank mixers mount directly onto the tank with Plate flange (ATM pressure) ANSI or DIN flanges and can be supplied with simple, cost effective sealing options including a bw cost Lip seal or Single Dry Running mechanical seal mounted on the mixer flange. The shaft and impeller type will be configured for optimum process performance for batch or continuous applications.

Single Mixer Seal
The single Dry running mechanical seal is specifically designed for mixer duty and is available in a wide range of seal face, elastomer and alloy combinations, to suit individual applications.

• Standard metric electric or pneumatic (dry or lubricated) motors
• Mounting flange ANSI or DIN
• Dry running single mechanical seal with - Hygienic options
• Double mechanical seals
• Optional shaft support collar to facilitate seal removal
• Lip seals, and Stuffing boxes
• Full range of Impellers
• Shaft and Impeller 316 stainless steel (other materials and shaft coatings available)
• Low headroom option available for tight spaces

• The mixers are suitable for a wide range of duties our application engineers will be pleased to advise on the most cost-effective mixer suitable for your application.
