Euromixers Range of Top Entry Heavy Duty Tank Mixers and Agitators offer a robust, ratable and cost-effective solution for a wide spectrum of mixing / agitating applications, mixer power shaft speed and impeller type are expertly configured by our application engineers for each application to ensure optimum performance.

Mixer Drive
EM tank mixer gear drives are designed on a robust rigid structure enabling high bending bads, the mixer output shaft is supported by heavy duty taper roller bearings with a minimum L10 design life of 100,000 hours, gears are ground for bw noise and bng service fife as standard. The rugged EM cast iron gearbox is fitted with double lip seal to effectively contain the gearbox lubricant under extreme operating conditbns.

Impeller Technology
Impellers are selected by our application engineers to meet your specific process requirements ranging from E-300 highest efficiency turbulent flow impeller which are ideal for blending, heat transfer, and solids suspensbn applications.

E-400 or E-315 impellers are a good choice where the viscosity changes over a wide range causing the flow regime to vary between turbulent and laminar flow and solids suspensbn applications, through to spiral and anchors for more viscous products.

Shaft Design
The mixer shaft is designed to operate below first critical speed in air and is suitable for operation at all fluid levels in tank, or with an inverter at frequencies up to 50 Hz, and to run smoothly without vibration at all speeds.
Shafts can be supplied in 304 or 316 stainless steel as standard with optional plastic or rubber covered shafts and impellers.

Open Tanks
Open tank mixers and agitators can be mounted on support beams or a suitable structure over the mixing tank, the preferred mounting position is on centre in a baffled tank or vertically off centre for some applications.

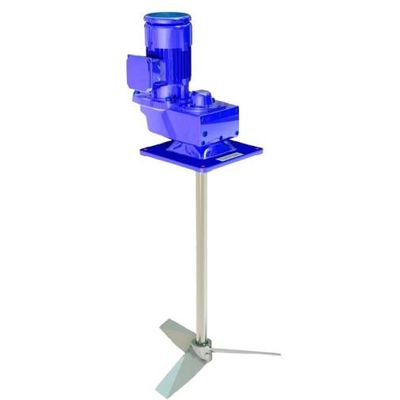

Euromixers - Modular Tank Mixer
