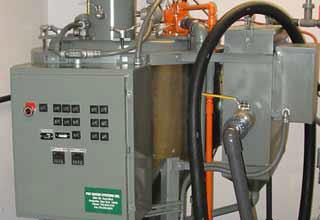

EvapoDry - Evaporation system

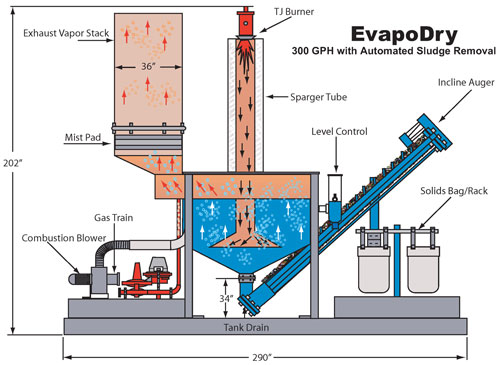

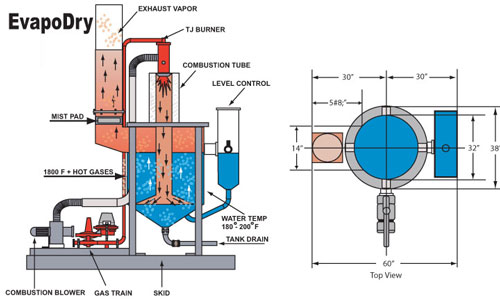

Ecologix provides low temperature evaporation systems designed to efficiently evaporate wastewater from landfill leachate recovery systems using the low BTU landfill gas as a fuel. The EvapoDry design incorporates a submerged burner tube that fires below the solution level and achieves 95%+ energy efficiency. This low temperature system evaporates solutions at approximately 180° F - 186° F, eliminating the vaporization of heavy metals and the organic breakdown of most solids. Precipitated solids are removed from the evaporator tank bottom with our unique hands off, user friendly conveyor system.
Ecologix provides low temperature evaporation systems designed to efficiently evaporate wastewater from landfill leachate recovery systems using the low BTU landfill gas as a fuel. The EvapoDry design incorporates a submerged burner tube that fires below the solution level and achieves 95%+ energy efficiency. This low temperature system evaporates solutions at approximately 180° F - 186° F, eliminating the vaporization of heavy metals and the organic breakdown of most solids. Precipitated solids are removed from the evaporator tank bottom with our unique hands off, user friendly conveyor system.
- Burner tube
- Combustion fan and motor
- Insulation
- Drain port
- Steel skid
- Controls
- Skid mounted for easy transportation
- PLC controls and monitoring
- Hands-off sludge removal system
- Minimal moving parts for increased system longevity
- Chemical feed
- Phase converter
- Corrosion package
- PLC controls
- Flame Arrester
