EVTN - Model 2000 -V-Inline Separator System
Nominal Flow of 20 to 60 GPM. Design Pressure/Temperature 250 psi/250F. Construction Materials 316 SS. 3 Hp, 3 Phase, 60 Hz, Explosion-proof Motors. Design Rotational Speed 6000 RPM. Maximum "G" Force of 1000. Skid Test Results to Meet Customers Discharge Requirements.

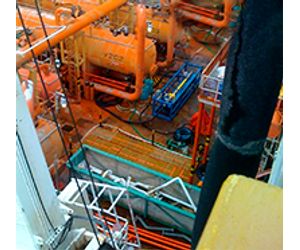

APPLICATION Pretreatment The V-inline 4000 Separator processes between 4,000 to 17,000 barrels per day as a pretreatment to provide a consistent influent stream to the IGF.
By installing the V-inline as a pretreatment, the customer increased separation efficiency from: 72% without the V-inline to: 93% separation with the V-inline Separator.
APPLICATION Oil and Sand Separation: The above V-inline, combined with other equipment, is a compact turnkey solution to treat a wastewater stream consisting of oil, water and sand.
- Is separating oil and sand at a rate of up to 15,000 barrels per day
- A discharge of
- Fluid pressure is approximately 150psi.
The customer cannot afford to lose any fluid pressure in completing the separation.
APPLICATION Water and Sand Separation: Two views of a complete turnkey system that includes three V-inline Separators working in parallel and in series, separating sand from water at rates of up to 30,000 barrels per day. The V-inline system is installed via hose connection to the customers existing system. The fluid pressure is approximately 15psi.
