Metrohm i-Raman - Model BWT-840001234 -EX Portable Raman Spectrometer
The i-Raman® EX is part of our award-winning series of i-Raman portable Raman spectrometers with our patented CleanLaze® laser with 1,064 nm laser excitation. Using a high-sensitivity InGaAs array detector with deep TE cooling, high dynamic range, and a high throughput spectrograph design, this portable Raman spectrometer delivers a high signal-to-noise ratio without inducing autofluorescence, making it possible to measure a wide range of natural products, biological samples (such as cell cultures), and colored samples.

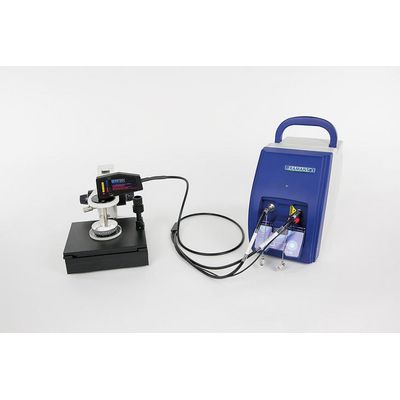

The i-Raman EX provides a spectral coverage range from 100 cm-1 to 2,500 cm-1, enabling you to measure across the entire fingerprint region. The system’s small footprint, lightweight design, and low power consumption ensure research-grade Raman analysis capabilities at any location. The i-Raman EX comes equipped with a high throughput fiber probe and an XYZ-positioning-stage with probe holder. It can be used with a range of sampling accessories to facilitate measurements on a wide range of different samples. For expanded analysis capabilities, it can be used with our proprietary Vision software as well as BWIQ® multivariate analysis software and BWID® identification software. With the i-Raman EX, you always have a high precision Raman solution for qualitative and quantitative analysis without fluorescence.
BWS485III
- Laser Power: 330 mW, nominal exiting probe / 430 mW, nominal at laser port
- Laser Wavelength (nm): 1064
- Laser Power Control: 0% to 100% (adjustable in 1% steps)
- Range: 100-2500 cm-1
- Resolution: < 10 cm-1 at 1296 nm
- Detector Type: TE-Cooled InGaAs
- CCD Temperature (°C): -20 ± 2
- Integration time: 200 μs – 5 minutes
- Computer interface: 0% to 100% (adjustable in 1% steps)
- Trigger: Yes (compatible with B&W Tek probes)
- DC Power Adapter Input: 110-240 V AC / 50-60 Hz
- DC Power Adapter Output: 12 V DC at 6.6 A
- Battery: optional (Model EBP106)
- Dimensions: 17 cm x 34 cm x 28 cm
- Weight: ~3.4 kg
- Operating Temperature (°C): 0 – 35
- Humidity: 10% to 85%, non-condensing
