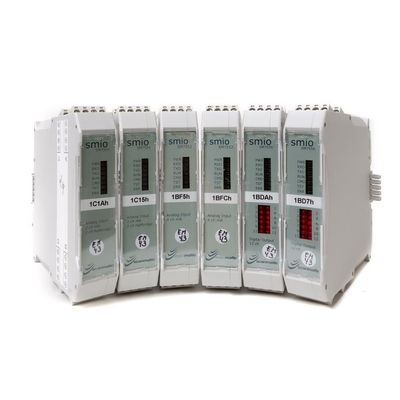

Scanmatic - Model SMIO -Expansion Modules for SM50xx

SHARE

SMIO modules are used to increase the number of physical interfaces in IEDs from Scanmatic e.g. SM5049 or SM5059. SMIO-modules are available in different variants, with different physical interfaces, and they make it possible to tailor the system to the specific application.

Most popular related searches
temperature monitoring

The following modules are available:

  • SMIO SM7552:
    • 4 x high precision 0 – 20 mA for current measurement.
    • 4 x low precision –5 – +30 V for voltage measurement.
    • Internal temperature.
  • SMIO SM7553:
    • 4 x high precision 0 – 2.500 V for voltage measurement.
    • 4 x low precision –5 – +30 V for voltage measurement.
    • Internal temperature.
  • SMIO SM7554:
    • 2 x high precision 0 – 20 mA current measurement.
    • 2 x high precision half bridge for Aandreaa sensors.
    • 2 x low precision –5 – +30 V voltage measurement.
    • Internal temperature.
  • SMIO SM7555:
    • 12 x isolated digital inputs.
    • Internal temperature.
  • SMIO SM7556:
    • 12 x isolated digital outputs.
    • Internal temperature.
  • SMIO SM7557:
    • 1 x analog RTD measurement.
    • Internal temperature

SMIO modules are connected to the IED via the SMIO bus (RS485). Addressing and identification of the different modules is automatic. Each module has a unique ID detected by the IED. The ID together with module type information makes it possible for the IED to automatically identify the presence of a module on the bus. The physical connection is via a 5 pins bus connector. The number of bus connectors can be increase on demand
