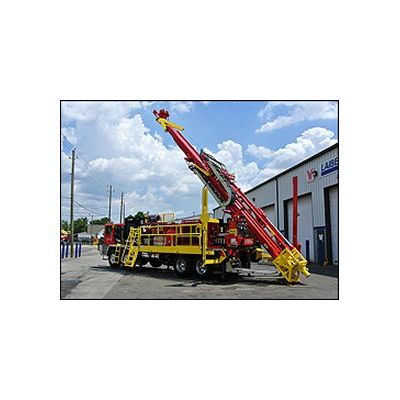

VERSA - Model V-2080ADP -Exploration Drilling Rigs

Power Distribution
Drill/truck single-power source with exclusive Versa-Drill power distribution gearbox/pump drive provides direct coupled thru-drive to power rig hydraulics and Ingersoll-Rand/Doosan screw air compressor

Hydraulics
Rotation is a closed loop circuit powered by a variable displacement piston pump
Feed, winch, auxiliary and set-up functions are powered by 5 axial piston load sense pumps

250 gallon reservoir with 10 micron in-tank return filter and 10 micron pressure filters for closed-loop pumps

Derrick
Tubular derrick construction: 12" x 28"
Overall length: 43`
Top head travel: 26` top
(No derrick crown load)

Feed System (patented)
Cylinder feed through gear track design
Pullback 80,000 lbs
Pulldown 34,000 lbs
Travel Speed Up 0 to 165 FPM
Down 0 to 213 FPM

Angle/Dump Package
Rig capable of drilling at a range from 45° to 90° vertical bore holes. Derrick mounted on a slide base for angle drilling and optimum bore hole placement

Standard Top Head
Variable 2 speeds/torques top head with 90° top head tilt
10,000 ft-lbs @ 110 RPM
5,300 ft-lbs @ 205 RPM

Control Panel
User friendly electro/hydraulic controls with functionally grouped gauges and twin fold-up aluminum platforms. Control panel mounted on slide rails to move side to side and back to front to create optimum driller visibility of bore hole

Leveling Jacks (6 point leveling)
2 mid-mounted 48" stroke leveling jacks behind cab
2 rear-mounted 36" stroke leveling jacks
2 stabilization 36" stroke leveling jacks to support cab front end weight

Split Centralizer Table
Centralizer base plate is split in half, rear half stationary, and the front half swings out to accommodate casing and tools. Also includes an air-operated drill rod holding wrench and hydraulic breakout wrench. Table opening will accommodate up to 10" casing through the table when drilling at an angle and the table will accommodate up to 10" casing when the derrick is vertical

Rod Rack
Expandable rod rack (holds 30 pieces of 20` drill rod)

Dimensions
Overall Length    45`
Overall Height    Derrick up: 47`
     Derrick at full stroke: 61` 6"
     Derrick down: 13`
Overall Width    8` 6"


Options (at additional cost)

Air Compressor
Up to 1250 CFM/350 PSI self-contained module
*Direct driven with drive shaft from power distribution box accompanied by hydraulic chassis clutch control (controlled at drilling console)

Optional 500 RPM Top Head
4,435 ft-lbs @ 220 RPM
3,185 ft-lbs @ 305 RPM
1,935 ft-lbs @ 500 RPM

Optional 750 RPM Top Head
8,750 ft-lbs @ 120 RPM
1,390 ft-lbs @ 750 RPM

Optional 1,000 RPM Top Head
8,750 ft-lbs @ 120 RPM
1,035 ft-lbs @ 1,000 RPM

Main Winch & Jib Boom
Up to 18,000 lbs (bare drum)

Auxiliary Hoist
Up to 8,000 lbs auxiliary hydraulic winch with swing jib, LED light and optional freefall Wire line winch (M8) (bare drum)

DHD Lubricator
7 gallon capacity

Water Injection
Up to 75 GPM

Mud Pump
3x4 centrifugal w/ mechanical seal
300 GPM/230 PSI

Hose Reel
Manual 1.18" hose OD capacity 175`

Catwalk
18" aluminum catwalk with optional inner and outer handrails

Additional Options
Reverse Circulation Swivel
Set up with METZKE Break Out and Slips Table
METZKE Reverse Circulation Sampling Components
1200 CFM Cyclone Assembly
Sample Hose Assembly
3 Tier Splitter Assembly
Cone Splitter Assembly
Australian Compliant Safety Package
Engine Guarding, E Stops, Inner Catwalk Railings, Etc.
Auxiliary/Booster air connections to both sides of the rig
Battery Isolation System

Truck Specifications
Model: Custom 6x8 two man carrier with center man drive
Australian “Load Share Compliant"
Wheelbase: 236"
GVWR: 94,000 lbs

Axles and Suspension
Front Axle Rating: 44,000 lbs
Front Suspension: 44,000 lbs each leaf
Rear Axle Rating: 50,000 lbs
Rear Suspension: 50,000 lbs spring-mounted walking beam

Engine
CAT C18, 630 HP

Transmission
Manual, 10-speed

Frame
12 5/8" x 3/8" x 3 1/4"
11 7/8" x 5/16" x 2 7/8" C-channel

Brakes
Air brake system with anti-lock brakes

Clutch
Eaton self-adjusting clutch

Fuel Tank Capacity
225 gallon total

Other Specifications
Alcoa aluminum wheels
Aluminum fuel tanks
Aluminum mirrors (powered)
Jacobs engine brake
Power steering
Power brakes
Diesel fired engine heater (pro heat)
AM/FM radio
Air conditioning
Water preheater
