Washbay - Model PSC - Explosion-Proof ...

Washbay - Model PSC -Explosion-Proof High Pressure Washers

FromJDI, Inc. / Washbay Solutions

SHARE

PSC Explosion-Proof high pressure washers are exceptionally well-engineered systems, CSA inspected and certified for use in Class 1, Division 1, Group C & D hazardous location environments. Depending on your application, they can built for onshore or offshore use. The offshore washers are equipped with stainless steel components to resist corrosion.

Most popular related searches

high-pressure washer

high-pressure hose

pressure washer

water pressure too low

pressure washing system

stainless steel pump

pressure regulator

flexible coupling

General belt-driven, oil-bath plunger pump with pressure regulator (multi-gun capability) and powder coat painted pump cover with louvered end covers
CSA approved / UL listed explosion-proof motor—1800 rpm, IP56 ingress protection, 1.15 service factor, class F insulation

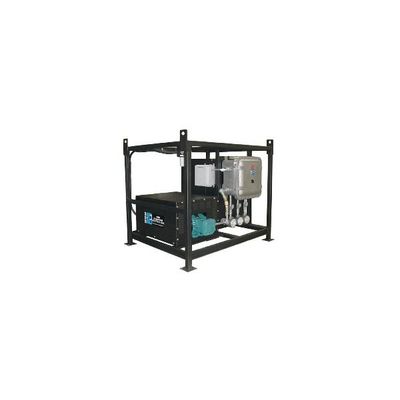

Non-direct immersion heat exchanger with #316 stainless steel heat exchange coil, Calrod elements with Incoloy sleeves, adjustable temperature controller and low water (heat exchanger fluid) level switchExplosion-Proof unit shown without accessories

Fully automatic start / stop circuit with solid state time delay shutdown—controlled by trigger gun activation
Steel cage construction with mounting feet and lifting eyes—powder coat painted
Automatic high temperature shut down (thermo probe) for pump protection
50 ft. high pressure hose assembly complete with lance, trigger gun and chemical injection
CSA approved / UL listed control box, heating elements, flexible coupling, conduit and seals
CSA inspected and certified for use in Class 1, Division 1, Group C & D hazardous location environments

Stainless steel pump cover with mesh/louvered end covers
Steel cage construction with drip-proof pump base, mounting feet and lifting eyes—galvanized to ASTM123 and CSA G164-M1981 specifications
Low inlet water pressure protection

General belt-driven, oil-bath plunger pump with pressure regulator (multi-gun capability) and powder coat painted pulley guard
CSA approved / UL listed explosion-proof motor—1800 rpm, IP56 ingress protection, 1.15 service factor, class F insulation
Fully automatic start / stop circuit with solid state time delay shut down—controlled by trigger gun activation
Steel cage construction with mounting feet and lifting eyes—powder coat painted
Automatic high temperature shut down (thermo probe) for pump protection
50 ft. high pressure hose assembly complete with lance, trigger gun and chemical injection
CSA approved / UL listed control box, heating elements, flexible coupling, conduit and seals
CSA inspected and certified for use in Class 1, Division 1, Group C & D hazardous location environments

Stainless steel pulley guard
Steel cage construction with drip–proof pump base, mounting feet and lifting eyes-galvanized to ASTM123 and CSA G164–M1981 specifications

CAT plunger or piston pump
SA nitrogen charged pulsation dampener
SRA surge relief assembly (for flows of 6 gpm and greater)
PG liquid-filled pressure gauge
LWPP low inlet water pressure protection with reset
ETM-EXA (D) integrated analog (digital) hour meter
USC upstream (high pressure) chemical injection
PCA-EX portability feature with phenolic casters and push/pull handle
HRA 13 (16) high pressure hose reel assembly with 13 in. (16 in.) drum
EGR-50 enclosed grounding reel with 50 ft. grounding wire and clamp
