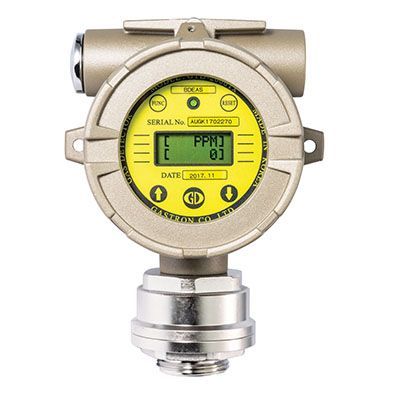

Gastron - Model GTD-2000TX -Explosion Proof Toxic Gas Detector

The GT2000TX Explosion-Proof Toxic Gas Monitor provides comprehensive monitoring of toxic and oxygen gas hazards in potentially explosive atmospheres (both indoors and outdoors). Users can modify detector operation using the LCD without ever needing to open the unit. This enables one-man, non-intrusive operation and reduces maintenance time and costs. This unit can be easily configured into existing installs with other manufacturer detectors and comes equipped with analog and digital protocols.

• Continuous detection of toxic gases and oxygen in explosion hazardous area with flame proof structure
• Self diagnosis function with built-in Microprocessor
• Excellent selectivity by adapting detection principle only for toxic gases & oxygen
• Superior performance for detecting toxic gases below TLV
• Multi functions and high quality with low cost of ownership
• Built-in back light LCD or OLED display
• Easy configuration of monitoring system by HART communication
• Auto calibration and program setting with a magnet bar
• 4-20mA (Current source or Sink) output signal
• Calibration and maintenance by one individual
• With the alarm unit (GTL-100):
• Normal - Green LED
• Alarm - Red LED, Buzzer(95 dB)
• Trouble - Yellow LED

• Brands: Gastron
• Detection Points: 1
• Display: Back-Lit LCD
• Intrinsically Safe: Yes
• Detection Principle: PID
• Manufacturer: GasTron
• Product Type: Gas Detectors
• Product Use: Fixed
• Detection Range: PPM
• Power Requirements: 24V
• Alarms: Visual
• Operation Temperature: -40°F to +176°F (-40°C to +80°C)
