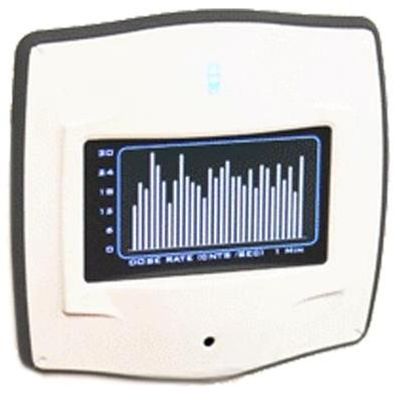

Falcon - Model 1EXLCD -Extended Range Gamma Area Monitor
The Falcon-1EXLCD operates on an automatic communication network that allows users to monitor a full network of Falcons as long as they are in range of another single Falcon system! The Falcon units will automatically form an intelligent, self-healing mesh network, allowing them to be constantly connected to each other as well as to the user network. This area monitor houses a sensitive scintillation detector and an extended range sensor that allows it to detect very small to large radioactive sources within 1 second and display it on a front panel LCD to inform users of the radiation levels.
Each Falcon can be controlled and monitored by a PC on the network or across the internet on any Tablet or remote PC. All communication is protected through 128-bit encryption. Monitoring can be real-time or past event logs can be reviewed. All your Falcon readings can be arranged to display on either a floor plan, map, satellite image, or other image of your choosing to provide a real-time overview and status over each location. Dose rates can be viewed in multiple graph formats.
- 0-50 R/hr Range
- Large CsI Detector
- LCD Display
- Mesh Network Enabled
- Battery Backup
- PC & Server Software Available
- Detectors:
- 6 cm3 CsI scintillation crystal with a PMT
- Optional HDD: PIN Photodiode
- Communication: D-tect SensorNet, Wi-Fi, Ethernet, USB, optional DX-Link
- Power:
- 120/240V AC, 50/60 Hz
- 110/220V Auto Detect
- Installation: Mount directly to junction box, Standard power cord
- Backup Power: Lithium-ion battery
- Detection Speed: Less than 1 second
- Dose Rate Range:
- 1 uR/hr to 100 mR/hr, second detector: 80 mR/hr to 50 R/hr
- *Air-kerma dose conversion 1 R = 0.876 REM for per ANSI +N42 32-2006.
- DR Linear Error: +/- 10% to Cs137
- Energy Range: 59 keV to 2 MeV
- Display: LCD 4.3″ Color TFT / Resolution 480 x 272 / Touch Screen
- Units: uRem/hr, CPS, uSv/h
- Audible Alarm: Piezoelectric buzzer (with LCD Display version only)
- Alarm Volume: > 98 dB
- Humidity: < 95% (non-condensing)
- Dimensions: 5.97 x 5.92 x 1.75 in.
- Weight:
- Non-LCD version: 0.5 lb (0.2 kg)
- LCD version: 0.65 lb (0.3 kg)
- Environment: IP65 rated for indoor/outdoor operation
Case color: order in white or black.
See other configurations of the Falcon:
- Falcon-1LCD: 100 mRem/hr with LCD display
- Falcon-1EX: 0-50 R/hr
- Falcon-1EXLCD: 0-50 R/hr with LCD display
- Falcon-1WEX(NEMA): 0-50 R/hr with IP65 enclosure
