Qal-Tek Associates products

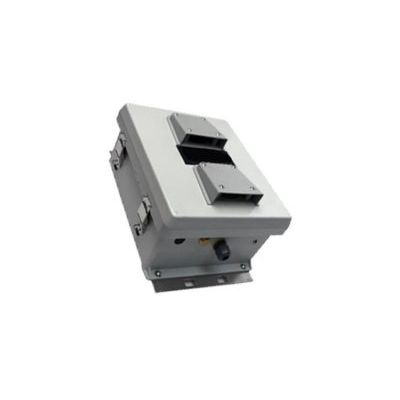

The Falcon-1WEX(NEMA) operates on an automatic communication network that allows users to monitor a full network of Falcons as long as they are in range of another single Falcon system! The Falcon units will automatically form an intelligent, self-healing mesh network, allowing them to be constantly connected to each other as well as to the user network. This area monitor houses a sensitive scintillation detector and an extended range sensor that allows it to detect very small to large radioactive sources within 1 second. The system is enclosed in a weather proof enclosure to facilitate outdoor locations.

The Falcon-1EXLCD operates on an automatic communication network that allows users to monitor a full network of Falcons as long as they are in range of another single Falcon system! The Falcon units will automatically form an intelligent, self-healing mesh network, allowing them to be constantly connected to each other as well as to the user network. This area monitor houses a sensitive scintillation detector and an extended range sensor that allows it to detect very small to large radioactive sources within 1 second and display it on a front panel LCD to inform users of the radiation levels.

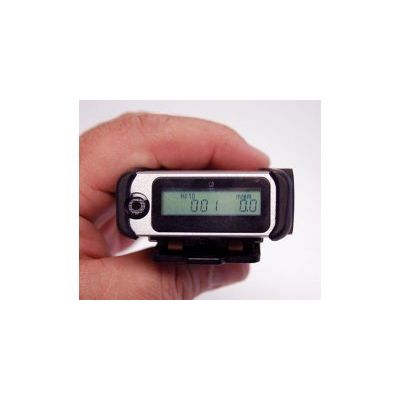

The Model NRF40 Electronic Personal Dosimeter (EPD) is designed to support official dose of record tracking and is enclosed in a ruggedized enclosure. It employs a silicon diode detector that measures dose rate from 1 to 999.9 mrem/h and tracks dose from 1 to 999.9 rem. Alarms can be set for each as well as stay times so workers are advised of how long they can remain in the present field before exceeding their dose limit. The dosimeter operates for approximately one year with an off-the-shelf battery. Initiating power is performed by removing a pin. Optional storage racks with built-in pins automatically turn these devices on and off whenever users insert or remove the dosimeters. These dosimeters interface to optional readers that can communicate to a central database/RWP system to watch and control dose.

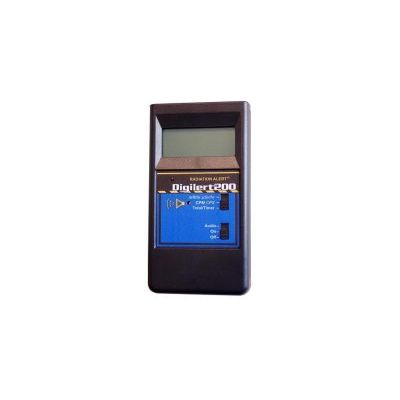

This instrument is an excellent, easy to use, general purpose radiation detector for a wide array of applications. It employs an end window GM tube that provides alpha, beta, and gamma sensitivity. Several of its neat features are its ability to download measurement data from the internal memory to a PC, set computer alarms, and calibrate with the free Observer USB Software.

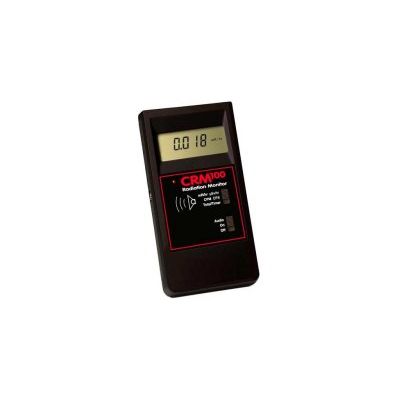

The CRM-100 is a general purpose geiger counter that measures alpha, beta, gamma, and X-radiation. It is intended for personal safety and educational purposes. Like the popular Radalert 100X, the CRM-100 features a 3-second update on its digital liquid crystal display (LCD). The LCD shows the current radiation level in your choice of milliroentgens per hour from .001 to 110 or counts per minute (CPM) from 0 to 350,000. When SI units are selected, the LCD shows readings in microsieverts per hour from .01 to 1100 or counts per second (CPS) from 0 to 3,500. This instrument also offers an accumulated total and timer function, up to 9,999,000 counts and 40 hours. A red LED blinks and a beeper chirps with each count (the chirp can be muted).

This is the meter that provides dual measurement type functionality or extended range capability. The dual detector/purpose capability, makes it an excellent choice for emergency response kits or any other applications where two probes measured by one instrument makes both practical and economic sense. The instrument houses an internal GM tube that measures 0-2000 mR/hr (0-500k cpm) and also allows an external probe of your choosing to be connected so you can easily switch between each without any hassle. This microprocessor driven instrument displays its measurement on a digital LCD employing large size character readouts that make the measurement easy to read and understand as compared to traditional analog type meter faces.

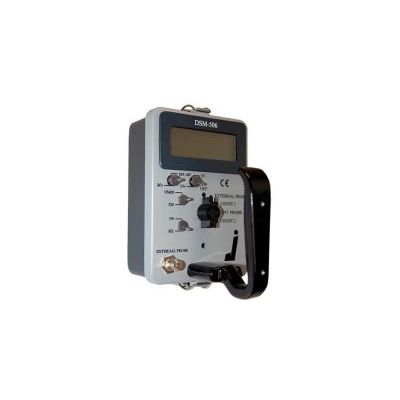

This is the meter that provides dual measurement type functionality or extended range capability. The dual detector/purpose capability, makes it an excellent choice for emergency response kits or any other applications where two probes measured by one instrument makes both practical and economic sense. The instrument houses an internal GM tube that measures 0-2000 mR/hr (0-500k cpm) and also allows an external probe of your choosing to be connected so you can easily switch between each without any hassle. The GSM-506 employs a traditional analog meter driven by a microprocessor electronics and is accompanied with an audio output.
