Metrohm - Extending the Scope of IC - Hyphenated Techniques
Interfacing Metrohm ion chromatographs with sophisticated sampling systems on the one hand (PILS, MARGA, and CIC) and/or universal, highly sensitive detection systems (IC-MS, IC-ICP/MS) on the other greatly extends the scope of ion chromatography.
Another option is the combination of Metrohm IC with complementary technologies from our portfolio, such as titration and voltammetry. TitrIC and VoltIC, respectively, enable dedicated multi-parameter analysis on a single system.

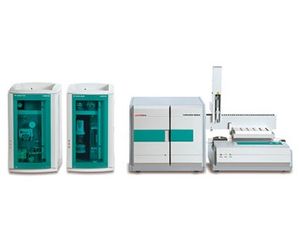

Pyrohydrolytic Combustion Ion Chromatography (CIC) extends the range of automated ion chromatography to all kinds of combustible samples.
In CIC, samples are digested by pyrohydrolysis in an oven unit. The resulting gaseous compounds are passed into an absorption solution, which is transferred to a Metrohm ion chromatograph for subsequent injection and analysis.
CIC is the preferred method to determine various halogens and sulfur in matrices ranging from solids to viscous, liquid, and gaseous samples.- For fully automated routine analysis.
- Superior to offline digestion methods both regarding sample throughput and accuracy of results
- Qualification and quantification of concentrations for each of the different halogens
- ASTM D7359-08 Standard Test Method for Total Fluorine, Chlorine and Sulfur in Aromatic Hydrocarbons and Their Mixtures by Oxidative Pyrohydrolytic Combustion followed by Ion Chromatography Detection (Combustion Ion Chromatography, CIC)
- UOP991-11 Chloride, Fluoride, and Bromide in Liquid Organics by Combustion Ion Chromatography (CIC)
- ASTM D5987-96(2007) Standard Test Method for Total Fluorine in Coal and Coke by Pyrohydrolytic Extraction and Ion Selective Electrode or Ion Chromatograph Methods
- ASTM WK 24757 Work item for F, Cl, S in LPG
-
ASTM D7994-17 Standard Test Method for Total Fluorine, Chlorine, and Sulfur in Liquid Petroleum Gas (LPG) by Oxidative Pyrohydrolytic Combustion Followed by Ion Chromatography Detection (Combustion Ion Chromatography-CIC)
- Environmentally relevant substances (oil, plastic waste, glass, activated carbon, ...)
- Electronic components (printed circuit boards, resin, cables, insulation, ...)
- Fuels (gasoline, kerosene, crude oil, heating oil, coal, butane, propane, natural gas, catalysts, ...)
- Plastics (polymers such as polyethylene, polypropylene, ...)
- Coloring agents (pigments, paints, ...)
- Pharmaceutical products (raw substances, intermediates, finished products, ...)
- Foods (oils, spices, flavorings and fragrances, ...)
