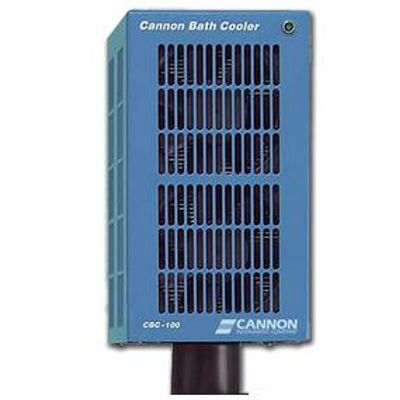

Cannon - Model CBC-100 -External Thermoelectric Bath Cooler
The CBC-100 external thermoelectric bath cooler extends liquid bath temperature ranges by lowering and maintaining bath temperatures as much as 15 °C below ambient. The CBC-100 improves bath temperature stability when operating at test temperatures < 40 °C and in high ambient temperature test environments. It is easy to use, compact and reliable.
Most popular related searches
constant temperature bath
crude oil testing
oil analysis
cooling system
thermoelectric cooler
hydraulic analysis
EC regulations
RoHS
liquid cooler
- Formulated oil analysis
- Hydraulic oil analysis
- Additive analysis
- Marine fuel testing
- Base stock analysis
- Light and heavy fuel testing
- Waxes/paraffin
- Crude oil testing
- Glycols
- Unit Weight: 3.9 kg (8.5 lb)
- Dimensions (W x D x H):
- Cooling unit (without probe) 10.8 cm × 19.0 cm × 22.2 cm (4.25 in × 7.5 in × 8.75 in)
- Cooling unit (with probe) 10.8 cm × 19.0 cm × 57.2 cm (4.25 in × 7.5 in × 22.5 in)
- Power supply 12.1 cm × 24.1 cm × 10.2 cm (4.75 in × 9.5 in × 4 in)
- Shipping Dimensions (W x D x H): 91.4 cm × 33 cm × 28 cm (36 in × 13 in × 11 in)
- Shipping Weight (With All Items): 10.4 kg (23 lb)
- Temperature Range and Accuracy: As much as 15 °C below ambient
- Operating Conditions: 15 °C to 30 °C,10% to 75% relative humidity (non-condensing),Installation Category II; Pollution Degree 2
- Electrical Specifications: 100-240 Vac,50/60 Hz; 250 watts power consumption
- Compliance: CE Mark; EMC directive (2004/108/EC); Low voltage directive (2006/95/EC); HI-POT (1900 Vdc,60 sec.); ROHS
- Bath Height: 8 in (minimum depth required)
