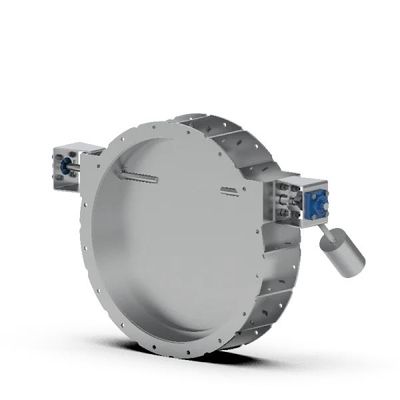

JastaFall Weight Flap Valves

SHARE

Our drop weight flap provides a safety feature that can be essential for any plant. The combination of butterfly valve and drop weight allows the valve disc to be opened or closed permanently in the de-energized or depressurized state. In addition, certain volume flows can be permanently set using the drop weight.

Most popular related searches
  • Diameter (DN): DN 200 – 2000
  • Installation type: Flange flap
  • Operating temperatures: up to +1000°C

Fall weight flap:

  • Diameter (DN): 200 – 2000
  • Installation type: Flange design
  • Connection dimensions: All common flange standards and special dimensions
  • Operating temperatures: up to +1000°C
  • Actuation types: Falling weight

Closure types and tightnesses

  • Resounding: 1% from Kv 90
  • with stop bar in housing: 0.5% from Kv 90°.
  • with stop bar and sealing insert: 0.05% of Kv 90°
