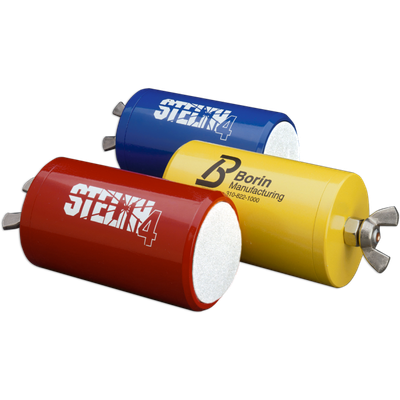

BORIN - Model STELTH 4 -Fat Cat Solid-State Portable Reference Electrode
The BORIN STELTH 4 Fat Cat is a solid-state portable reference electrode designed for both water and soil applications. Utilizing palladium-based technology, the STELTH 4 is hydrocarbon-proof, overcoming limitations previously faced by electrodes made from traditional materials such as copper, silver, and zinc. This makes it particularly effective in environments with high chloride levels where traditional electrodes struggle. With features like a wing nut for easy handling, a flat ceramic plug for stability, and a robust ABS case, it ensures reliable performance in varying conditions. Its specifications include a 2.25-inch width and 4.5-inch length, ±5 millivolts accuracy, and suitability for environments with pH 4-9 at temperatures ranging from 32°F to +176°F (0°C to 80°C) and -60°F to +185°F (-51°C to 85°C). Designed for portability, it offers a wide sensing area suitable for soil and concrete surfaces and guarantees performance with a minimum 10-year service life.
As with the slimmer STELTH 3 portable, the STELTH 4 Fat Cat is built with a wing nut instead of a wire, making it ideal for use above ground or with Miller Electrode Extensions.
The STELTH 4 Fat Cat also has a convenient flat ceramic plug shape so that you can stand it up on its end for easy readings.
Just a few reasons BORIN STELTH solid-state reference electrodes are unique:
- Never need recharging or recalibrating
- Impregnated with membrane that keeps electrolytes from drying out or getting contaminated
- Trap hydrogen sulfide or excess chloride ions before they cause damage
- Let you know when you have dangerous levels of AC to deal with
- Can thrive in ALL environments, even those chemically detrimental to other reference electrodes
- Remain accurate for their lifetime
- Won’t die every winter
BORIN stands behind every STELTH reference electrode you buy:
- We test EVERY SINGLE reference electrode we make
- You can track/trace any STELTH
- Every STELTH is calibrated for the life of the cell
- Our STELTH reference electrodes will work for years and remain stable after you retire
Uses
Portable – Fat Cat; Stand-alone applications; surface or underground use
Size
2.25″ (57 mm) width x 4.5″ (114 mm) length high-impact resistant plastic electrode case
Standard Lead Wire
n/a
Service Life
Minimum 10-year service life
Shelf Life
Infinite shelf life, infinite stability
Material
ABS electrode-case housing; ceramic tip with Moisture Retention Membrane (MRM™)
Certified Potential Range
±5 millivolts vs. standard
pH Range
4–9 pH
Working Temperature Range
32° F to +176° F (0° C to 80° C)
Material Temperature Range
-60° F to +185° F (-51° C to 85° C)
