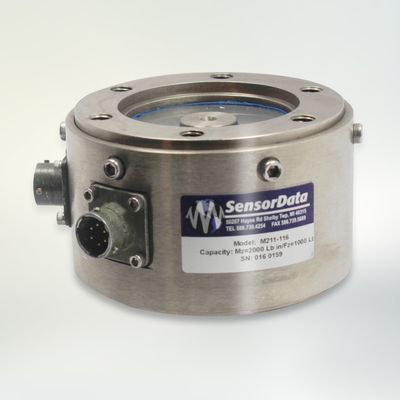

SensorData - Model M211-116 -Fatigue Rated TorqueThrust Sensor
The M211-116 was designed for use in material testing machines. The torque/thrust sensor provides a small package size, a fully fatigue rated structure with low inertial mass and high stiffness, low crosstalk between the torque and thrust measurements and resistance to the negative effects of extraneous forces in both measurement axes. The M211-116 can be used with AC carrier and DC strain gage signal conditioning electronics. Interconnecting cable assemblies are available as an option. SensorData will provide in-house calibration of the M211-116 with customer-supplied electronics for a fee. The M211116 is available in non-standard rated capacities on a special order basis; please contact SensorData with your torque/thrust measurement requirements.Most popular related searches
- Fully fatigue rated
- Deflection less than 0.002 inch
- Height 2.3 inch and diameter 3.75 inch
- Crosstalk less than 2%
- SAE 4340 alloy steel construction with satin nickel finish
- Supplied with mating connectors
Capacities: 1K lb-in torque & 5K lbs thrust, 1K lb-in torque & 2K lbs thrust, 100 lb-in torque & 200 lbs thrust
