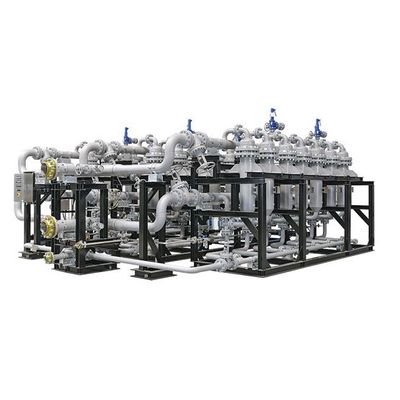

Faudi - Model F28 -Fully Automatic Backflush Module Filter Systems
The fully automatic backflush filter has proven itself in numerous industrial applications as a process-reliable, high-performance and by and large maintenance-free backflush filter system. Employing the concept of fully automatic backflushing of the filter cartridges, the filter cleans itself during the ongoing filtration process with no interruption of operation. A portion of the volumetric flow that has already been filtered or a (supplemental) flushing medium is used for backflushing. he dimensioning of module filter systems is tailored to your use case, for example, with custom shapes and dimensions as well as other materials and customer specifications.
Filtration capacity
This is dependent on the filter size and the filter medium. The modular design makes it possible to adapt the filtration capacity to suit individual needs. Filtration capacities from 15 m³/h to 500 m³/h are possible.
- Refineries (protection of reactors for further processing)
- Petrochemical industry (refining of fuels)
- Increased cost-effectiveness in fuel production processes
- Enables production of lighter fuels meeting increased environmental protection requirements
- Fully automatic, continuous production process thanks to fully automatic backflushing for regeneration/
cleaning of the filter elements - Optimal combination of longevity, high contaminant holding capacity and minimized backflushing losses
- Unsurpassed flexibility with respect to flow rate, contaminant amount and changing future requirements
thanks to its modular design - Backflushing is independent of the existing operating pressure
- Durable and low in maintenance
- Filtration fineness: 20 µm – 100 µm
- Fluids: Diesel oils, gas oil, LCO, VGO, HVGO, naphtha, amines (MDEA), acidic water
- Filter material: Slotted tube, woven mesh or woven mesh laminate cartridges of stainless steel
- Control: Connection to existing control systems of the customer, separate operating/control panel, EX protection
