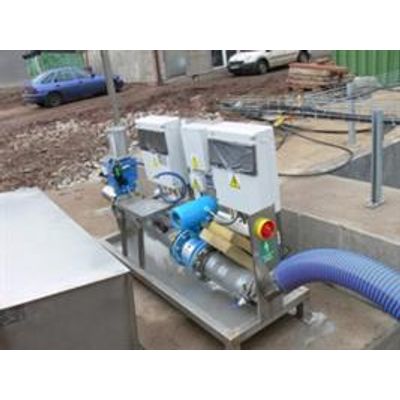

SchulzEP - Model SPOV 4 -Fecal Station

with Tanic is designed for acceptance of waste water with a max. flow rate 100 l / s

embodiment in stainless steel, for installation just prepare supply 230V fuse 16A + RCD

stainless steel measuring system is highly resistant to clogging, without sharp angles, arc discharge is a flexible hose, which enables quick and easy dismantling

antifreeze is used thermal insulation and heating thermostat

Knife gate valve with pneumatic actuator - allow the discharge station to identify the customer`s identification card versions with measurement of conductivity and pH in excess of specified limits the slide valve closes and prevents further discharge

contactless identification card with indelible code more reliable than magnetic or bar code

data from the station is to be occasionally (daily, weekly or a monthly basis) be transferred to the desktop computer (PC) - cables, memory cards, radio or telephone. Here are assigned cards to new customers and set up their accounts, monthly summaries prepared for invoicing and is designed for sampling regime

control station computer in diagnostic mode can be stored in memory and waveforms of measured values given station, power outages and other service information, you can monitor the progress of acceptance and real-time

station may be operated separately, without a PC - the identification of each card is assigned a counter imported quantity that can be called up on the display of the terminal station

the station can be connected to the new sampler SVP 23 SPOV having 23 sample bottles, to ensure smooth operation of the sampler sucked imported faecal water through a hose inside diameter of 19 mm, and the clearance is maintained until the sample bottle, then the sampler after the sample is automatically purged pure water entire sampling system from the sampling point to the bottle
