SchulzEP - Model SPOV S1 -Fecal Station

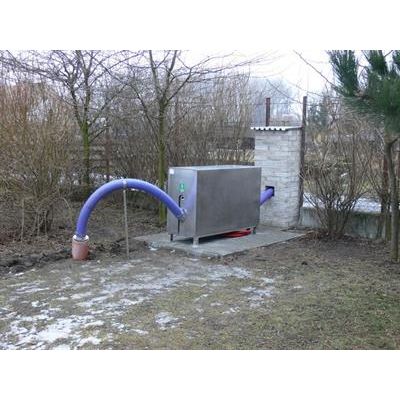

Stations for the acceptance of waste water SPOV S1 station SPOV S1 is easier cheaper option SPOV4 station. This station is primarily intended for smaller wastewater which allows registration of an imported amount of wastewater. The station is equipped as standard with an anti-flow empty pipe and gate valve. The station can also be equipped with probes for measuring the pH and conductivity with the possibility of closing the discharge conduit when the pre-set parameters, pH and conductivity. Identifying the importer is solved by a key switch, each driver must be unlocked prior to the discharge station of his key which opens the discharge pipe, and activates its counter imported amount of wastewater. The station is equipped with standard 5-identification keys, this number can be extended to 20th
Function Description.
-
Station is designed for acceptance of waste water with a max. Flow rate 100 l / s
-
embodiment in stainless steel, for installation just prepare supply 230V fuse 16A + 30 mA
-
stainless steel measuring system is highly resistant to clogging, without sharp angles, arc discharge is a flexible hose, which enables quick and easy dismantling
-
antifreeze is used thermal insulation and heating thermostat
-
plate slide valve drive - allow the discharge station to identify key customer
-
The construction material is stainless station 1.4301 both discharge pipes, protective cover, the structural frame and the legs with the housing for the control terminal and for hanging the hose.
Stations without a meter.
With Tanic can be delivered in a version without a meter. The station then only allows imports of each counting. When this variant is possible that one driver opens the station and to this identification, the water discharged from multiple fekál. We recommend using a station with flow meter.
The basic version includes:
-
kit to measure flow
-
control computer identification with 5 keys
-
Fastening of the stainless steel, including the legs with the cover for the terminal and hanging hose
-
Control cabinet with five identification key
-
Knife gate valve with pneumatic drive and compressor
-
connecting hoses before and after the station
Possible r reasonably common:
-
Outdoor Design - protective housing, heating, insulation
-
adding up to 15 identification keys
-
RS485 communication port for connection to the control station computer WWTP , or to the program for remote monitoring
