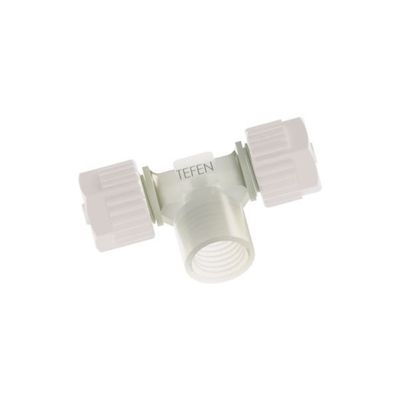

Tefen - Model 22057346021 -Female Branch T
Product Code: 22057346021. Size Units: Metric. Material: PVDF. Thread Type: BSPT. Color: White. Temperature Range: -62° C up to +107° C (–80° F up to +226° F). Working Pressure: Up to 14 bar (200 psi) at +20° C. Thread Size: 1/8″. Tube Outer Diameter 1: 6 mm. Carton Quantity: 200.
Most popular related searches
Application
Hydraulic systems. To be used with all kind of very corrosive fluids like Acids, Weak bases, Halogens, Alcohols, Salts, Heavy duty oxidants, Detergents, etc. UV resistant, Nuclear resistant.
Comments
Advantages: for special aggressive chemical applications.

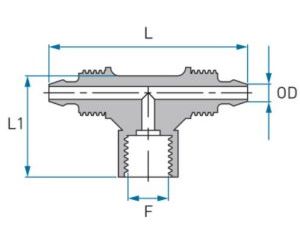

- Product Code: 22057346021
- L1 mm: 25
- F BSPT: 1/8″
- L mm: 46.6
- OD mm: 6
