Tefen Flow and Dosing Technologies Ltd. products

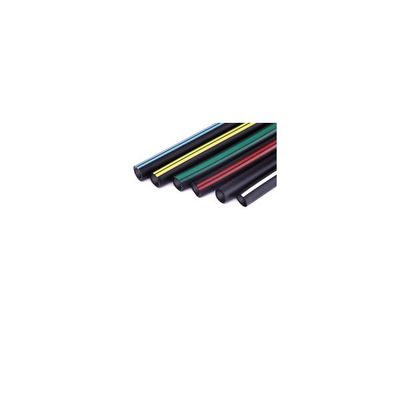

LDPE Tubes
Product Code: 14030048206. Name: LDPE Tubes. Size Units: Metric. Material: LDPE. MixRite Type: Red. Temperature Range: -20° C up to +45° C. Working Pressure: 10 bar (147 psi) at +20° C. Min Bend Radius: 1 1/2″. Roll Length: 200 m. Outer Diameter: 8 mm.
Dosing Pumps - Water Driven Pumps - MixRite 1
MixRite 1 - Dosing Pump
Name: MixRite 1. Product Code: 28010220000. Thread Type: BSPT. Thread Size: 3/4″. Color: Grey/Blue. Min Injection Per Hour: 0.04 l/h [0.01 gpm]. Max Injection Per Hour: 2 l/h [0.53 gpm]. ON OFF System: Yes [Manual]. Dosage Rate: 0.2% [Fixed Rate]. Water Pressure: 0.2–8 bar [3 to 116 psi]. Working Pressure: 0.2–8 bar. Chemical Resistance: Standard. Flow Rate Range: 20–1000 l/h [0.09 to 4.4 gpm].
MixRite 1 - Dosing Pump
Name: MixRite 1. Product Code: 2801010CL00. Thread Type: BSPT. Thread Size: 3/4″. Material: PP+FG. Color: Blue. Min Injection Per Hour: 0.02 l/h [0.005 gph]. Max Injection Per Hour: 10 l/h [2.64 gph]. ON OFF System: Yes [Manual]. Dosage Rate: 0.1%–1%. Water Pressure: 0.2–8 bar [3 to 116 psi]. Working Pressure: 0.2–8 bar. Chemical Resistance: Standard. Flow Rate Range: 20–1000 l/h [0.09 to 4.4 gpm].
MixRite 1 - Dosing Pump
Name: MixRite 1. Product Code: 2801020CL00. Thread Type: BSPT. Thread Size: 3/4″. Material: PP+FG. Color: Blue. Min Injection Per Hour: 0.04 l/h [0.016 gph]. Max Injection Per Hour: 20 l/h [5.3 gph]. ON OFF System: Yes [Manual]. Dosage Rate: 0.2%–2%. Water Pressure: 0.2–8 bar [3 to 116 psi]. Working Pressure: 0.2–8 bar. Chemical Resistance: Standard. Flow Rate Range: 20–1000 l/h [0.09 to 4.4 gpm].
Dosing Pumps - Water Driven Pumps - MixRite 2.5
MixRite 2.5 - Dosing Pump
Product Code: 2802020C000. Name: MixRite 2.5. Material: PVDF. Thread Type: BSPT. Color: Grey. Working Pressure: 0.2–8 bar. Thread Size: 3/4″. Water Pressure: 0.2–8 bar [3 to 116 psi]. Dimensions: 22″ × 7.27″. Weight: 4 pound [1.81 kg]. Min Pressure Loss: 0.1 bar. Max Pressure Loss: 0.85 bar. ON OFF System: No [Air Release]. Air Release: Yes. Chemical Bypass: Standard. Dosage Rate: 0.3%–2%. Chemical Resistance: Extreme. Foot Valve: Optional. Min Injection Per Hour: 0.021 l/h [0.006 gph]. Max Injection Per Hour: 50 l/h [13.21 gph]. Flow Rate Range: 7–2500 l/h [0.03 to 11 gpm].
MixRite 2.5 - Dosing Pump
Product Code: 2802020B112. Name: MixRite 2.5. Material: PP+FG. Thread Type: BSPT. Color: Grey. Working Pressure: 0.2–8 bar. Thread Size: 3/4″. Water Pressure: 0.2–8 bar [3 to 116 psi]. Dimensions: 22″ × 7.27″. Weight: 4 pound [1.81 kg]. Min Pressure Loss: 0.3 bar. Max Pressure Loss: 1.5 bar. ON OFF System: No [Air Release]. Air Release: Yes. Chemical Bypass: External. Dosage Rate: 0.3%–2%. Chemical Resistance: Standard. Foot Valve: Optional. Min Injection Per Hour: 0.06 l/h [0.016 gph]. Max Injection Per Hour: 50 l/h [13.21 gph]. Flow Rate Range: 20–2500 l/h [0.088 to 11 gpm].
MixRite 2.5 - Dosing Pump
Product Code: 28020400000. Name: MixRite 2.5. Material: PP+FG. Thread Type: BSPT. Color: Grey. Working Pressure: 0.2–8 bar. Thread Size: 3/4″. Water Pressure: 0.2–8 bar [3 to 116 psi]. Dimensions: 22″ × 7.27″. Weight: 4 pound [1.81 kg]. Min Pressure Loss: 0.2 bar. Max Pressure Loss: 1.4 bar. ON OFF System: No [Air Release]. Air Release: Yes. Chemical Bypass: Standard. Dosage Rate: 0.4%–4%. Chemical Resistance: Standard. Foot Valve: Optional. Min Injection Per Hour: 0.028 l/h [0.007 gph]. Max Injection Per Hour: 100 l/h [26.5 gph]. Flow Rate Range: 7–2500 l/h [0.03 to 11 gpm].
Dosing Pumps - Water Driven Pumps - MixRite 3.5
MixRite 3.5 - Dosing Pump
Product Code: 28300210000. Name: MixRite 3.5. Material: PP+FG. Thread Type: BSPT. Color: Grey. Working Pressure: 0.2–8 bar. Thread Size: 3/4″. Water Pressure: 0.2–8 bar [3 to 116 psi]. ON OFF System: Yes [Manual]. Dosage Rate: 0.3%–2%. Min Injection Per Hour: 0.03 l/h [0.008 gph]. Max Injection Per Hour: 70 l/h [18.5 gph]. Flow Rate Range: 10–3500 l/h [0.04 to 15.5 gpm].
MixRite 3.5 - Dosing Pump
Product Code: 28300510000. Name: MixRite 3.5. Material: PP+FG. Thread Type: BSPT. Color: Grey. Working Pressure: 0.2–8 bar. Thread Size: 3/4″. Water Pressure: 0.2–8 bar [3 to 116 psi]. ON OFF System: Yes [Manual]. Dosage Rate: 0.5%–5%. Min Injection Per Hour: 0.05 l/h [0.013 gph]. Max Injection Per Hour: 175 l/h [46.23 gph]. Flow Rate Range: 10–3500 l/h [0.04 to 15.5 gpm].
MixRite 3.5 - Dosing Pump
Product Code: 2830010CL00. Name: MixRite 3.5. Material: PP+FG. Thread Type: BSPT. Color: Grey. Working Pressure: 0.2–8 bar. Thread Size: 3/4″. Water Pressure: 0.2–8 bar [3 to 116 psi]. ON OFF System: No [Air Release]. Dosage Rate: 0.1%–0.9%. Min Injection Per Hour: 0.01 l/h [0.003 gph]. Max Injection Per Hour: 31.5 l/h [8.32 gph]. Flow Rate Range: 10–3500 l/h [0.04 to 15.5 gpm].
