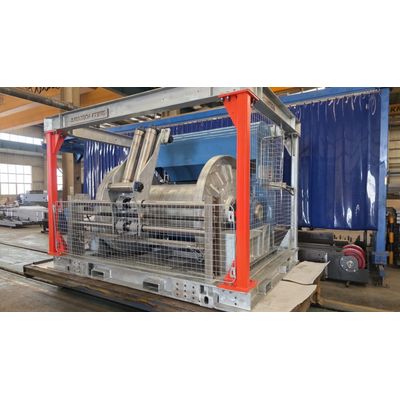

Feritech - Model FT3615 / 15T -Multimode Winch
The Feritech FT3615 15t Winch is a fast, precise and robust unit. Designed with safety and ease of operation in mind, the simple controls can be operated locally or remotely and the compact crash frame offers superb protection to both operators and equipment. The compact design offers efficient use of space as well as fitting inside a standard shipping container. The winch is supplied as a self contained, ready to use package. Simply fasten to the vessel with either the incorporated ISO blocks or sea-fastening blades, plug in and power up. The drum accepts a wide range of line diameters that can be pre-tensioned and spooled onto drum prior to shipping to site if required.
15000 kg
SWL
0. 6 m/s
Maximum line speed
0- 20 °
Exit angle
- W3200 x H2260 x D2300mm
- Designed in accordance with DNVGL-ST-0378 “Offshore and platform lifting appliances”
- Safe working load—15000kg
- 0.6m/s maximum line speed
- 110 kW high power digital inverter control
- 3 phase 380-480v AC 3 phase supply (3P+E)
- Drum capacity of 9500m with 14mm diameter (accepts 10-40mm)
- Designed to accommodate 6000m of 17.3mm coax cable
- Can be shipped globally within a standard ISO container
- 0-20° exit angle
- Compatible with most standard sliprings including the Feritech range of mercury sliprings
- Constant tension mode available as standard, between 3000kg—15000kg
- Compatible with both ISO twist locks and sea-fastening blades
