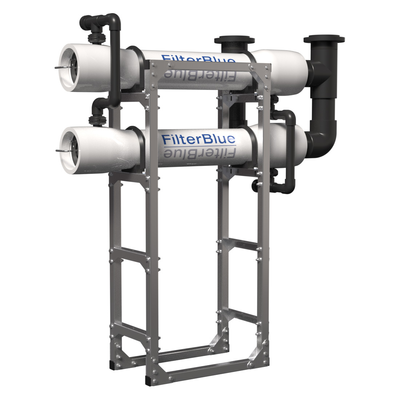

Everblue - Model Filterblue FBL-02-2RS -Fiberglass Housings
Housings for filter cartridges FilterBlue made in fiberglass FRP represent, technically and financially, the best solution available on the market for the construction of high flow filtration plants (starting at 24 m³/h). FilterBlue containers for filter cartridges offer 3 great benefits: perfect modularity, minimum installation space and low investment costs. The FilterBlue containers for cartridges can be mounted easily and quickly in filtration batteries suited to meet all the flow rate requirements.
Everblue designes and manufactures a complete line of containers single and multi cartridge that contain all the cartridges of Everblue`s range of products. Different materials (stainless steel AISI 316, fiberglass, different plastic materials such as polypropilene, polyamide and pvc) and different methods we use during production process, make Everblue`s containers especially suitable for water treatment plants for drinking and industrial waters, for the food, farmaceutical, chemical and petrolchemical sectors. The perfect combination of containers and filtering cartridges produces allow us to satisfy any flow rate, efficiency and contaminant removal.
- Product type:: Fiberglass housings
- Connection IN/OUT: DN 125 FLANGE DN8063 PN16
- Max working pressure:: 10 bar
- Test pressure:: 15 bar
- Max working temperature:: 50 °C
- N° cartridges:: 4
- Cartridges endcaps:: BL
- Min cartridge internal diameter:: 90
- Max cartridge external diameter:: 200
- Cartridges height: 20"
- Applications:: Water, Sea water
- Capacity empty 2 bar:: 2333 l/min
