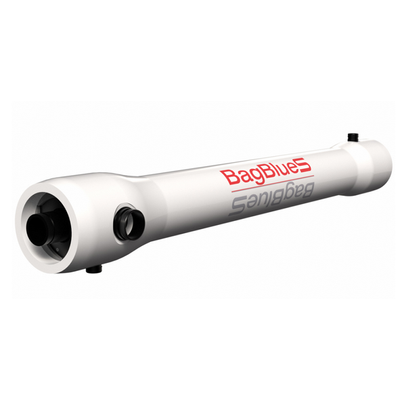

Everblue - Model Bagblue FBL-S-02 -Fiberglass Housings with Strainer
The BagBlue-S basket strainer filter, made of FRP fiberglass, can be fit two or three PVC baskets depending on the flow rate to be treated. It is ideal for installation in both seawater and brackish water systems and meets the many market demands: high filtration grades available from 50 microns to 3000 microns and possibility of installation in battery (flow rate from 36 m3/h). The quick removal of the basket from the container thanks to the horizontal installation of the same, is also a point of absolute advantage, which is why maintenance and cleaning require a very limited amount of time.
Everblue`s industrial basket filters are ideal for pre-treatment of self-cleaning filters, for pump protection and for filtration after sand filters or resin plants. Strainers are used to remove from the water leaves, pieces of leaves, branches, small stones, sand, rust, parasites, insects, large particles and they guarantee a removal of 85% of all particles larger than 50 microns (0.05 mm). Basket filters are available in different materials such as stainless steel AISI 316, fiberglass and plastic materials, polypropilene and polymide.
- Product type: Fiberglass housings with strainer
- Material: FRP (Fiberglass)
- Heights - In/Out: 2x20 "
- Micron: 50 µm - 80 µm - 125 µm - 200 µm - 300 µm - 500 µm - 800 µm - 1000 µm - 2000 µm - 3000 µm
- Max working pressure 10 bar
- Test pressure: 15 bar
- Max working temperature: 40 °C
- Applications: Prefiltration for water treatment plants, Process water, Evaporative cooling towers, Heat exchangers, Irrigation, Aquaculture, Protection of spray nozzles, Water, Sea water
