Piedmont - Model XS-Style -Fiberglass Reinforced Polyester (FRP)
The XS-Style is made of fiberglass reinforced polyester (FRP) and includes unique components and design elements making it fit for multiple brands of universal cartridge elements. A cost-effective solution, this filter housing is a reliable protection for your BWRO and SWRO membrane systems. Piedmont’s cartridge filter housings are meant for new and existing water treatment plants.
Most popular related searches
cartridge filter housing
filter housing
melt-blown cartridge
water treatment plant
cartridge filter
filter cartridge housing
cartridge housing
SWRO membrane
water treatment
filter cartridge
- Designed to ASME-X/EN 12121/ Ad Merkblatt / BS 4994 / AS 1210 code
- Design temperature s up to 90 C/ 194F
- Design pressure up to 10 bar / 150 psi
- Horizontal and vertical configuration available
- Internal lining of vynil ester Derakane 411, FDA/NSF compliant
- Davit arm and swing bolts available
- Coupling or flanged connection available
- Reinforced, state of the art internal cartridge support rods made out of FRP and polyamide material with knife-edge sealing for Double Open End (DOE) cartridge connection.
- Suitable for both string wound and melt-blown cartridges
- Outside to inside flow
- Internal support rod
- Larger open flow area resulting in lower pressure drop
- High-speed assembly nut for easy and fast cartridge replacement
- Anti-rotation notch ensuring complete rod will not rotate when removing upper nut
- Careful selection of materials allowing for design temperatures of 90C
- Increased mechanical resistance by improved manufacturing process
- Absence of glue
- Attractive design
- SOE connections available
- Spring type connection also available
- Flow rates: 245.2500 m3/hr
- No. elements: 90-335
- Elements length: 30/40/50/70
- Cartridge flow: outside-inside
- Housing layout: Vertical
- Features: Side inlet / bottom outlet /
- davit arm available
- Optional: Swing bolts
- Ideal: High flows and stand alone
- Design pressure: 6/10 bar

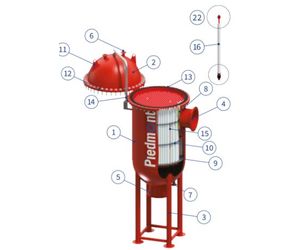

- 1. Shell & cap / Main body: FRP
- 2. Closure cover plate: FRP
- 3. Suport legs: SS 316
- 4. Inlet flange: FRP
- 5. Outlet flange: FRP
- 6. Air vent: FRP
- 7. Clean drain: FRP
- 8. Deflector plate: FRP
- 9. Tube sheet: PVC/FRP
- 10. Guide plate: PVC/FRP
- 11. Lifting lugs: FRP
- 12. Closure bolts: SS 316
- 13. Main body gaskets: EPDM
- 14. Hoist (lifting arm): SS 316
- 15. Support rod: PA + FRP
- 16. Cartridge element: PP
- 22. Internal support rod: FRP + PA
