- Model MCG 2100 - Field Calibrator for Level Gauge

From

0

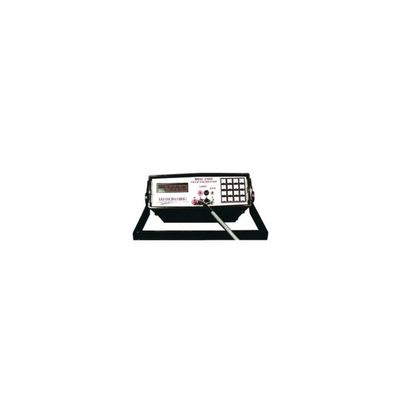

The MCG 2100 is able to communicate with any of the L&J engineering Level Gauges. The calibrator is equipped with the ability to display the level reading, temperature reading and the discrete input status being sent back from the transmitter. This enables the operator to check the conditions of the field wiring and proper operation of the control room. In the troubleshooting mode, different types of faults are displayed on the LCD.

  • Comprehensive Diagnostics
  • Portable Gauge Emulator
  • Reduced Start-Up Time
  • Local LCD Display

  • Output Voltage:
    • P= 36 VDC, power for transmitter
    • E= 0 VDC, input from transmitter
    • C= 30 VDC, output from pulse train
    • G= 0 VDC, ground
    • Others available
  • Readout: 32 character alphanumeric LCD
  • Protocols: Tankway Std.; GPE, Modbus Opt.
  • Units:
    • Level: Feet, inches and 1/16ths or feet, and .01 feet,  or metric.
    • Temperature: +/- 8000 F, 20 F or C increments
  • Power Supply: 12 VDC gel cell
  • Battery Life: 8 hours minimum per change
  • Recharge Time: 10 hours maximum
  • Connections: 4 binding posts (field) 1 recessed power receptacle for 12 VDC charger
  • Dimensions:
    • Height: 2.5”, Width 7”, Depth: 9.5”
    • Weight: 4 lbs.
  • Calibrator Settings:
    • Baud Rate: 300, 600, 1200, 2400, 4800, 9600
    • Address: 0-127 selectable
    • Mode: Receiver or transmitter
    • Test: Pattern 1 or 2
    • Level/Temp: Level test or temperature test
    • Rotation: Clockwise or counter clockwise for MCG 2000
    • Power: ON/OFF switch
    • RTD: Test Copper & Platinum, RTD’s (optional)
