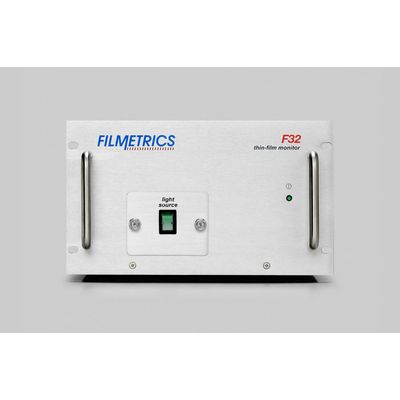

Filmetrics - Model F32 Series -The Compact Solution for In-line Measurements
Film thickness is measured in-line quickly and easily with the affordable F32. Spectral analysis of reflectance from the top and bottom of your film provides thickness information in real time. The F32 advanced-spectrometry system comes in a half-width 3U rack-mount chassis and, with additional spectrometers, can measure up to four different locations (up to two locations for -EXR and -UVX versions). The F32 software can be controlled through digital I/O or the host software to start/stop/reset measurements. Measurement data can be exported automatically to the host software for statistical process control (SPC). Filmetrics® also provides optional lens assemblies for easy integration onto existing production fixtures.
The included software and USB connectivity make installing the F32 onto any Windows-platform PC simple. With help from the FILMeasure software, which is preloaded with over one-hundred materials, measurements of single and multilayer stacks are easily attainable. New materials can be added quickly by measuring the optical constants of samples or by importing data from an existing source.
- Integrated spectrometer/light source unit
- FILMeasure 8 software
- FILMeasure standalone software for remote data analysis
- Flattening filter (for highly-reflective substrates)
- Reflectance standards
- Spare TH-2 lamp
- Library with over 130 materials included with every system, along with access to 100s more
- Applications Engineers available for immediate 24-hour assistance (Mon-Fri)
- Online "Hands On" support
- Hardware upgrade program
