EHC - Model HT -Filter
FromEHC Teknik AB

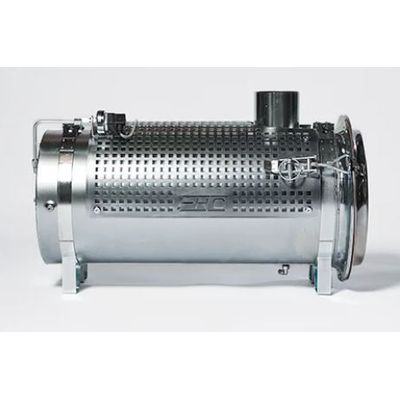

The HT Filter is designed for both permanent and temporary installation on heavy vehicles, forklifts and working machinery used in confined spaces. The filter is available in multiple sizes and comes in stainless or galvanised steel. Inside it, you will find a disposable cartridge filtration element. EHC HT consists of a housing with a heat shield made from galvanized or stainless steel. The delivery includes the filter, electric pressure switch with signal lamp or safety valve with membrane and counter flange. EHC HT is available in three sizes, with different exhaust volumes. Every HT model has a light version.
Most popular related searches
cartridge filter element
particle filter
waste production
filter element
emissions standard
pressure switch
confined space
disposable filter cartridge
filter cartridge
COSHH
- Machines with low exhaust temperature
- For permanent and temporary installations
- Available in 3 sizes
- Stainless or galvanised steel
- For heavy vehicles, forklifts, working machinery, etc.
- Up to 99% efficiency
- Separation 99,3% of 0-28 nm particle
- Connections EHC HT35 – 128mm, EHC HT20 – 100mm, EHC HT10 – 100mm
- Max. Temperature 250°C, <350°C for short period
- Filter lifetime The lifetime is dependent on the engine size, engine type, how it is used and engine condition
- Diameter EHC HT35 – 500mm, EHC HT20 – 400mm, EHC HT10 – 400mm
- Length EHC HT35 – 705mm, EHC HT20 – 715mm, EHC HT10 – 395mm
- Weight EHC HT35 – 40kg, EHC HT20 – 23kg, EHC HT10 – 18kg
- Filter EHC HT complies with emission standards in TRGS 554 (D), COSHH (GB) and VERT (CH) B272
- The EHC Particle Filter can be disposed in regular waste.
