The company`s Inox Dpt. is UNI EN ISO 9001 Ed. 2015 Registered (n° SSG 20492 AQ 3432).

The production is currently centred around the following products:

Stainless steel AISI 304 or AISI 316 expansion tanks (BABY-STAR, BABY-OSMO, BABY-APOLLO),with or without internal membrane , capacity from 1,5 lt. to 500 lt. All tanks can be positioned vertically or horizontally.
The membranes, all interchangeable, are in Butyl or EPDM, both suitable for use with food products. The expansion tanks are manufactured according to “PED” n° 97/23 EC regulations. This type of expansion tank can be used in water-raising plants- as water hummer in water-raising pumps, as water -pressure accumulator in reverse osmosis systems.
Stainless steel AISI 304 or AISI 316 containers (FILTER-BOX) manufactured to internally house filter cartridges with D.O.E. attachments or code 7 (226) or code 8 (222) attachments.
Currently, single cartridge containers are produced for 10”-20”-30”-40” cartridges and multi-cartridge containers for 3-7-12-18-24-27-36-47-62-90-144-185 10”- 20”- 30”- 40” cartridges.
All cartridge containers can be manufactured with internal polyamide coating and suitable IN-OUT attachments for the food industry.
These containers can be used in the water-treatment industry, in the treatment and purification of process waste water and in the food and drinks industry.
Stainless steel AISI 316 Filters (PURE WATER COMPACT SYSTEMS) for water microfiltering and sterilization to right point for usage.
Currently we manufacture single cartridge container 1x10” and multi cartridges container 3x10”.
Stainless steel AISI 316 tanks (STAINLESS STEEL BEVERAGE FILTER HOUSINGS) manufactured to internally house filter cartridges with code 7 attachments.
Currently, Fam presents in its range single and multi cartridge containers for 1-3-7-10-16-21-28-39 of 10” 20” 30” 40” cartridges.
The cartridge containers can be disassembled in their all parts to be better cleaned. The internal and external surfaces have submitted to a brushing and electro-polishing process. The cartridge containers are suitable for the filtration and the sterilization of any liquids in food or pharmaceutical industry.
BFH-LM Housings (LENTICULAR FILTERS HOUSING) can be used to filter wine, beer and other alcoholic beverages and for clarifying fruit juices.
They also have an important application in the pharmaceutical cosmetics and chemical industries. Filtering with lenticular cartridges is preferred as less time is needed for maintenance, with considerable advantages in terms of productivity.
TheWHEELED FILTERhas been projected to clean swimming pools, fountains, little lakes and little spots not easy to be reached.
It’s made up of an electric pump with an internal prefilter and a multicartridge stainless steel filter, all assembled on a stainless steel trolley.
Stainless steel containers AISI 304 or AISI 316 (FILTER BAG HOUSINGS) to be fitted inside standard filter bags.
Currently available containers for 1-3-4-5-7-9-15 single bags size 1 and for 1-4-7-9 double bags size 2. Actually we manufacture containers for 1 single bag size 1M and 2M.
A simple and efficient system which, through the rotation of the handle of the internal basket, guarantees perfect sealing of the basket and at the same time prevents leakage from the filtering bag of the basket itself.
These containers are suitable for use in waste water filtering processes, with chemical products, paints, resins, oil, and in the food and drinks industry.
Stainless steel AISI 304 or AISI 316 (PREFILTRI) with removable internal basket. The standard version is manufactured with internal basket in stainless steel with 6 mm. Diam. hole; on request, the filtering degree can be varied up to 80µm.
These containers can be used as pre-filtering systems in pumping plants for swimming pools and in industry for filtering process waste water.

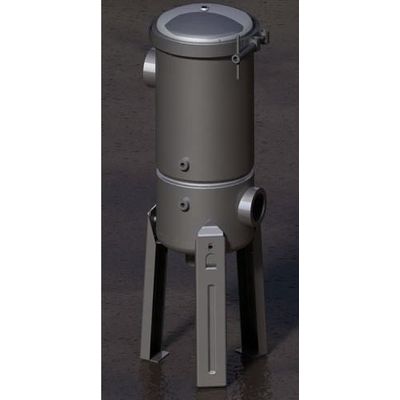

Stainless steel AISI 304 or AISI 316 (FILTER BASKET RB) with removable internal basket. The standard version is manufactured with internal basket in stainless steel with 6 mm. Diam. Hole and internal net in stainless steel AISI 316 200 or 150 or 50 µm.
These containers can be used in industry for filtering process waste water.
Stainless steel AISI 304 or AISI 316 (FILTER BASKET RB-IB) with removable internal basket. The Filter Basket RB-IB have inside of the basket some brushes rotatable manually or automatically from the outside. The standard version is manufactured with internal basket in stainless steel with 6 mm. Diam. Hole and internal net in stainless steel AISI 316 200 or 150 or 50 µm.
These containers can be used in industry for filtering process waste water.

All our finished products are not only tested but are also pickled and passivated with immersion in suitable tanks. External and internal polishing is carried out either electro-chemically or by brush. On request we can to coat all our stainless steel housing with polyamide coating system for sea water application.
