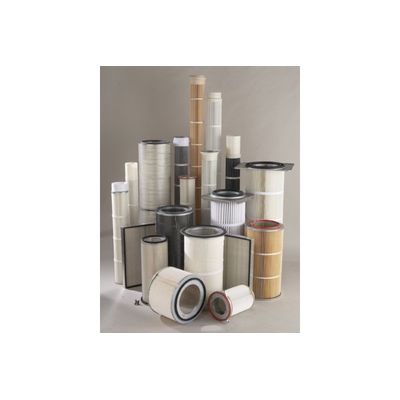

SFC - Filter Cartridges and Pleated Bags
Standard Filter offers a wide variety of industrial and commercial cartridge filters. In most cases cartridges can be custom made in various sizes and constructions to fit your specific requirements, along with high temperature capabilities, fire retardant, PTFE membrane, conductive and high efficiency type materials. Standard Filter also provides various pleat spacings and pleat depths.
Most popular related searches
filter cartridge
pleated depth filter cartridge
cartridge filter
pleated filter cartridge
pleated depth filter
depth filter cartridge
depth filter
fire retardant
flame retardant
pleated cartridge
Standard Filter provides cartridges for many cartridge type collectors including the following:
- Paper : 100% Cellulose 80/20 Cellulose/Polyester 50/50 Cellulose/Polyester 100% Cellulose Flame Retardant
- Synthetic : 100% Spun Bond Polyester 100% Spun bond Polyester w/PTFE 100% Polyester Hydro/Oleophobic
- Felt : All types, please call for details
- Tops : Round ¢ 14x16 Rectangular Flange ¢ Screw Mount ¢ Gaskets
- Bottoms : Open Closed ¢ Closed with Bolt Hole
- Supports : Various internal and external supports are available upon request
100% Cellulose :
- Basis Weight (lbs per 3000 sq. ft.) : 79 lbs.
- Frazier Permeability (CFM/sq. ft. at 0.5 inch H2O) : 12
- Caliper Overall (inches) : 0.015
- Corrugation Depth (inches) : 0.032
- Mullen Burst Dry (PSI) : 54
- Temperature Limit : 200° F
80% - 20% Cellulose/Polyester :
- Basis Weight (lbs per 3000 sq. ft.) : 80lbs.
- Frazier Permeability (CFM/sq. ft. at 0.5 inch H2O) : 14
- Caliper Overall (inches) : 0.029
- Corrugation Depth (inches) : 0.017
- Mullen Burst Dry (PSI) : 50
- Temperature Limit : 200° F
Spun Bond Polyester :
- Basis Weight (lbs Per 3000 sq. ft.) : 81lbs.
- Frazier Permeability (CFM/sq. ft. at 0.5 inch H2O) : 28-33
- Mullen Burst Dry (PSI) : 287
- Temperature Limit : 275°
- Efficiency (depending on application) : 0.9995
- Temperature Limit : 200° F
