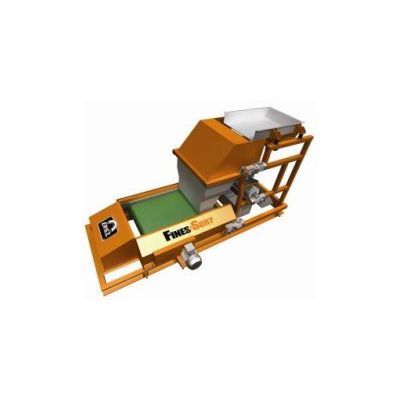

Eriez new FinersSort Metal Recovery System is the ultimate in fine particle metal reclamation. FinesSort's series of powerful magnetic components recover valuable ferrous and non-ferrous metals from the fines waste stream in scrap yards.
- Recover metals less than 25mm diameter
- Throughputs from 2 tons per hour
- Designed for ease of installation into new and existing recycling plants
- 1000mm, 1200mm and 1500 feed widths available

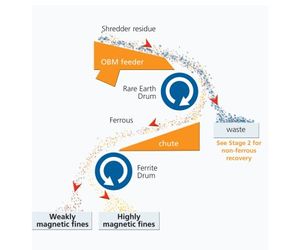

This first stage of the Eriez FinesSort is used to remove ferrous metals from shredder residue and split into two different fractions.
Material first passes over a Rare Earth Permanent Magnetic Drum (Stage 1a) to remove all ferrous metals from the shredder and then on to a Ferrite Permanent Magnetic Drum (Stage 1b) to separate the highly magnetic material from the weakly magnetic material.
The waste stream that is produced when separating the ferrous metals in Stage 1 can very often contain valuable non-ferrous metals which would end up going to landfill.
Using a combined Stage 1 FinesSort with a RevX ST or RevX-E ST Eriez Eddy Current Separator (Stage 2) will remove these metals bringing more value to the reclaimed metals.
Eriez can supply each stage of the FinesSort separately or as a complete unit.
