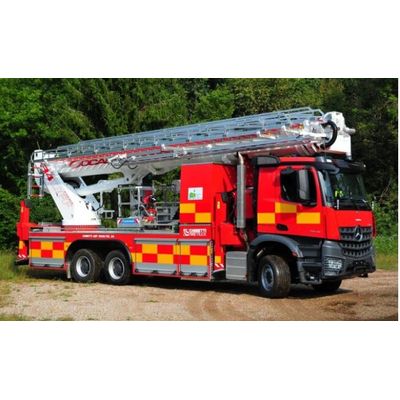

Carrozzeria - Model ABP 3000 / TEL 34 -Fire Fighting Aerial Platform Vehicle

Cabin: 2 doors - 3 seats - Air conditioning

Aerial Platforms:

• Max. working height 34,0 m
• Max. outreach 22,5 m (400 kg load in the basket) / 25,0 m (150 kg load in the basket)
• Max downreach: -5,0 m
• Controls: wireless remote control for outriggers - Basket and turret control stations for boom & basket operation.
• Rescue ladder at boom side: provided
• Max. Basket load: 400 kg (monitor off) / 200 kg (monitor on)

Water tank: 3`000 lt from Polypropylene (available also from AISI 316L or GRP)

Water pump: CHINETTI 2T-5012 - 5`000 lt/min @ 10 bar - Bronze body and impellers.

Basket monitor: AKRON Stream Master, style 3782 - 950 - 3`800 l/min  @ 5.5 bar - Throwing distance: 80m

Side lockers: 2 on each side - anodized light alloy shutters - Side illumination scene lights available on request.

Other features:

• Reverse camera or 360° Back-eye system
• Dash-cam with recoring HDD
• Emergency engine shut-down system in case of explosive athmosphere

Fire Fighting and Rescue Equipment: on request

S/N: 7341
