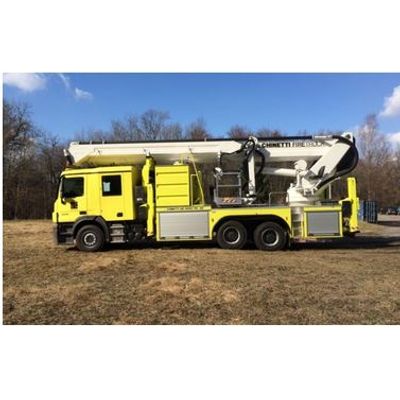

Carrozzeria - Model AIS 4000 / TEL 35 -Fire Fighting Aerial Platform Vehicle
Chassis: Mercedes-Benz Actros 3336 6x4 - 360 Hp - GVWR: 33`000 kg - Automatic gear-box Power-Shift. Cabin: 4 doors - 6 seats - Rear seats can be provided with SCBA holders integrated in the back rest, on request.
Most popular related searches
aerial fire fighting system
fire fighting vehicle
fire fighting
fire fighting system
water pump
aerial fire fighting
rescue equipment
mixing system
water pump inlet
GRP pump
Aerial Platforms:
- Max. working height 35,0 m
- Max. outreach 22,5 m (400 kg load in the basket) / 25,0 m (150 kg load in the basket)
- Max downreach: -5,0 m
- Rescue ladder at boom side: provided
- Max. Basket load: 400 kg (monitor off) / 200 kg (monitor on)
- Foam tank: 5`000 lt from Polypropylene (available also from AISI 316L or GRP)
- Water pump: GODIVA P1B+6010 - 5`000 lt/min @ 12 bar - Bronze body and impeller.
- Foam pump: CHINETTI PSCH 500 - 500 lt/min @ 18 bar - Bronze made.
- Basket monitor: AKRON Stream Master, 5`000 l/min @ 5.5 bar
- Foam mixing system: Balanced pressure type with centralized foam injection. It can work with water at the pump inlet from hydrants or open source.
- Side lockers: 2 on each side - anodized light alloy shutters - Side illumination scene lights available on request.
- Fire Fighting and Rescue Equipment: on request
- S/N: 7175
