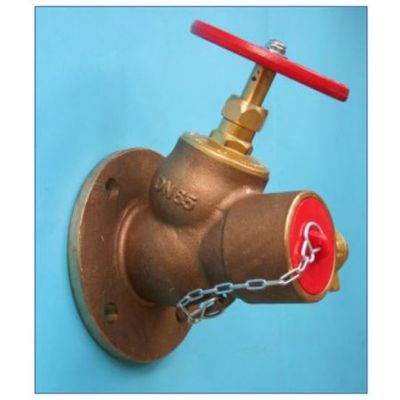

Fire Hydrant Globe Valve

Compact and elegant design with excellent flow characteristics and suitable for both on-shore and off-shore fire protection applications.

Most popular related searches

The shut-off of the valve has good water tight sealing by means of a high quality rubber bonded seat disc which acts as a primary rubber to metal seal, whilst a secondary metal to metal shut-off is also incorporated into the design of the valve.

Landing valves are made to BS 5041 Part 1 and are hydrostatically tested to 16.5 bars (valve seat) and 22.5 bars (body).

Standard inlet is 65mm PN16 flange.

Standard outlet is 65mm female instantaneous.

Valve outlet comes complete with plastic plug and chain. Optional brass or gunmetal plugs are available on request.

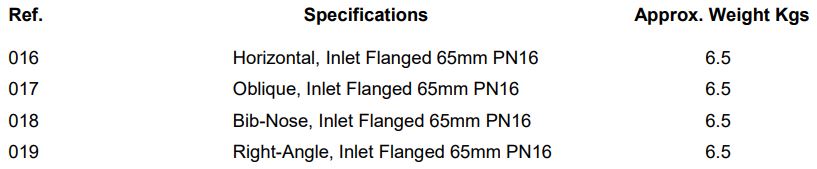

Choice of Horizontal, Oblique, Right Angle or Bib Nose
Dual seat valves, primary rubber & secondary metal seating
Made to BS 5154 & BS5041 Part 1
Various inlets and outlets available
Suitable for offshore and onshore applications

Fire Hydrant Globe Valve

Product Details

The shut-off of the valve has good water tight sea...

Features
