Cosasco - Fixed Point Ultrasonic Sensors

Cosasco Non-Intrusive monitoring solutions offer a simpler, faster and safer installation than any competing systems in the market:

• Clean the pipe surface. No need to remove solid coatings

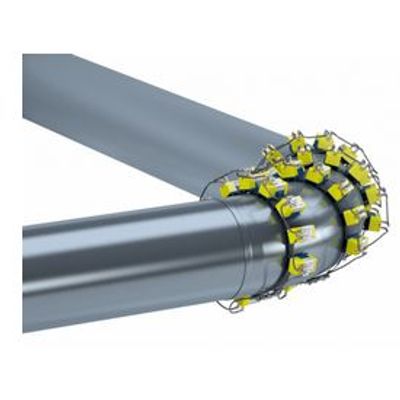

• Position the non-intrusive sensors and engage the locking mechanism
• No gluing, welding or or hot work permits required
• Connect the non-intrusive system to the Junction Box or the
• Field Data Logger
• Connect the Portable Data Logger and verify
• successful installation
• Install a sensor protection cover

Single sensors are replaceable. The entire non-intrusive unit can be easily adjusted or relocated.

Non-Intrusive solutions, monitor your pipeline and improve your asset integrity management.

Intrinsically safe and rated for Zone 1, C1 Zone 1.

• Market Leading performance with wall resolution better than 0.1mils, or 2.5um
• Accurate, repeatable wall loss corrosion and erosion data
• Non-intrusive, easily installed and operated without process interference
• Real time online, data logging and manual data collection options
• Intrinsically safe and certified for use in class 1 zone 1 areas

• Accurate corrosion/erosion feedback increases the service life of pipelines
• Real-time feedback on the effectiveness of corrosion inhibitors makes a significant OPEX saving
• Accurate wall loss history enables reduced inspection and intelligent pigging activity
• Accurate and direct erosion monitoring
• Monitoring of selective weld corrosion and heat-affected zone (HAZ) corrosion
• Fast, maintenance free installation
• Retrofitttable, can be adjusted or relocated easily without specialized equipment

• Pipelines
• Offshore platform topsides
• Onshore fracking operations
• Onshore production facilities
• Gas Plants
• Refineries
• Chemical & Petrochemical
• Water & Wastewater Plants
• Mining
