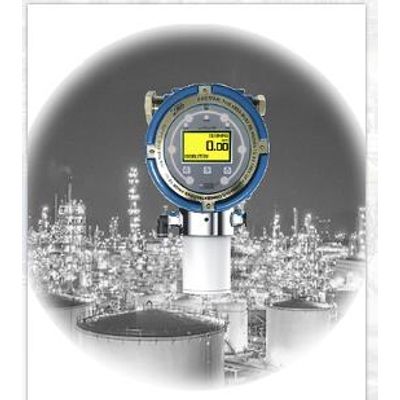

GDS - Model PIDScan 800 -Fixed VOC Detector

SHARE

PIDScan 800 is a revolutionary state-of-the-art fixed  VOC detectors based on PID technology for continuous measurement of VOCs.  It is the world`s first fixed type, ex-approved VOC detector with automatic self-cleaning feature.  Literally, there is no cleaning of the lamp required.  Both zeroing and span calibration can be carried out automatically.  The transmitter has resounding performance even in high temperature and humidity conditions; as a result of its unique “Earth-ring guard” technology, and built-in temperature and humidity sensors for real-time compensation.

Most popular related searches
fixed VOC detector
VOC detection system
temperature and humidity sensor
diaphragm pump
sample gas
humidity sensor
temperature sensor
gas sampling
VOC monitoring

  • 4-20 mA analog and MODBUS RS485 output ; HART as optional.

  • PID sensor highly resistance to humidity interference

  • Explosion proof EEx d IIC T6 for hazardous application

  • With built-in diaphragm pump to draw in sample gas

  • Magnetic interface for non-intrusive access to menu

  • Large numerical and graphical dot-matrix display with backlight sensor

PID sensor                              10.6 eV

Range / Resolution  /                0 - 2000 ppm / 1 ppm (high range version)

(optional range)                       0.0 - 100.0 ppm / 0.1 ppm (standard version) /  (0.0 - 1000 ppm)

                                                 0.00 - 10.00 ppm / 0.01 ppm ( ultra sensitive version ) / ( 0.00 - 20 ppm)

                                                 *  with Temperature and Humidity compensation on board

Self-cleaning                            Built-in self-cleaning

Relay contacts                         SPST dry contacts (x3)

Ring LEDs Alarm                     Built-in ring alarm LEDs; Yellow and Red

Response Time                       T90 < 10 sec (improved)

EX Approval                            ATEX II 2G Ex d IIC T6  Gb

                                                UL Class I Div I Group B, C and D

IP Rating                                 IP66 EMI / RFI

Compliance to EMI / RFI         Directive 89 / 336 / EEC

Power                                     9 - 36 Vdc, max. 125 mA at 24 Vdc

Cable                                     3-wire shielded; max. 1 kOhm at 24 Vdc

Output  / (option)                   4 - 20 mA   , HART (option)

                                               Modbus RS 485

                                               SPST relay contacts (x2), Fault relay (x1); max. 30 V, 2 A.

Sampling method                  Built-in diaphragm pump (~500 ml / min)

Display                                  Graphic LCD 128 x 64 pixels, with backlit

User interface                       Non-intrusive using magnetic key

Operating Cond.                  Temperature: -20 degC to +60 degC (-4 degF to 140 degF)                                                                      Humidity: 0 - 95%RH (non-condensing)

Physical Data                        Weight: 3.5 Kg

                                              Dimension: L 124 x D 125 x H 253 (mm)
