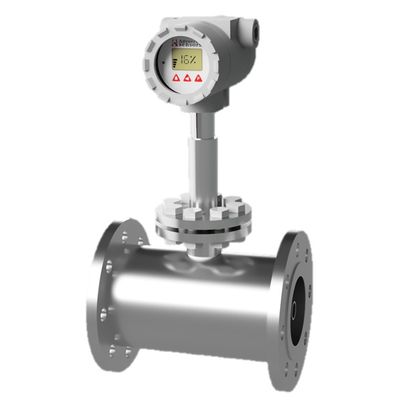

Advanced Sensors - Model WIO-300K -Flange Spool, Side-Stream & In-Line
The EX rated WiO-300K series is a Water Cut analyser that measures the amount of water in oil to high levels of accuracy. Water Cut is also referred to as Water in Oil, BS&W, OWD or WFM. The smart sensor technology uses a capacitive method to measure the percentage of water contained within the sample, with a large measurement range from a few 100ppms to 100% water.* The WiO-300K sensor is a spool section for in-line measurements from 3 to 48 inches. The WiO-300K uses a fully flanged design. This model is made for working pressure up to Class 1500#.
- High level of accuracy +/-% up to 5% water cut.
- Large measurement range ppm to 100% water in oil.*
- Optional static mixer.
- Spool section.
- Temperature compensation.
- 4-20mA and Hart communications.
- Isokinetic sampling.
- (* Range will depend on operating conditions; in general, -% for most applications and up to % for example sweet water).
- Smart sensor, no need for a separate controller.
- Option to combine the Water Cut with Advanced Sensors Oil in Water Analysers.
- Low power consumption.
- Easy to use and install.
- Works in Bypass and in-line.
- ATEX or FM/UL Explosion Proof.
Capacitance
Providing unrivalled accuracy and reliability of Water Cut
Smart Sensors
Low Power, no need for a separate controller, all technology including display and controller is included in the sensor.
