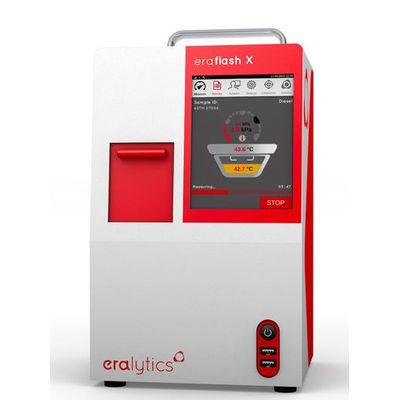

eralytics - Model ERAFLASH X -Flash Point Tester for Petroleum Liquids Analysis

ERAFLASH X is the future-proof replacement for ASTM D93 Pensky-Martens testers. Tailored for the petroleum industry all kinds of liquids can be tested over the wide temperature range of 18 °C to 370 °C using only 2 mL of sample. The full compliance with the latest flash point standard ASTM D7094 brings 100% safety, unrivaled speed as well as best in class precision to your laboratory.

Xtra FAST: Shortest turnaround times

ERAFLASH X features eralytics’ patented PBT – Peltier Boost Technology® , which allows for unrivalled heating and cooling power and a wide temperature range of 18 °C to 370 °C (64 °F to 689 °F). In combination with the small sample volume, significantly shorter turnaround times are achieved compared to all other flash point testers on the market. With ERAFLASH X, a typical ASTM D7094 diesel measurement is performed in less than 12 min, which is two times faster than a traditional D93 Pensky-Martens test. This enables up to 5 complete flash point tests per hour with ERAFLASH X.

Xtra Safe: 100% safety in the laboratory

Based on the inherently safe CCCFP design, ERAFLASH X measures the flash point through pressure changes inside a continuously closed cup. In contrast to Pensky- Martens instruments, the ERAFLASH flash point tester series does not use an open flame, eliminating the risk of fire in your laboratory. Instead, 2 pins create an electric arc that is used to ignite the sample inside a closed chamber. Due to the small sample volume (2 ml) and the resulting low oxygen amount within the closed cup, the flame is automatically extinguished after ignition. The pressure increase in the closed cup following the ignition is used for the detection of the flash point. A pressure increase of ≥ 20 kPa is defined as a flash point by the method.

Xtra PRECISE: Best precision in class

ERAFLASH X is the most precise flash point tester for all kinds of petroleum liquids. As proven by the latest ASTM interlaboratory flash point study, ASTM D7094-23 offers best in class precision over the widest temperature range and for the widest range of samples. ASTM D7094 is already listed in the following fuel specifications as a valid flash point test method and a future-proof replacement for ASTM D93 Pensky-Martnes testers:

ASTM D396 – Fuel Oil
ASTM D975 – Diesel Fuel
ASTM D2880 – Gas Turbine Fuel Oils
ASTM D3699 – Kerosine
ASTM D7467 – Diesel Fuel Oil & Biodiesel Blends

Xtra EASY: Straigthforward measurement and sample handling

In contrast to 75 mL for a traditional ASTM D93 Pensky-Martens flash point test, ASTM D7094 requires only 2 mL of sample. Flash point testing with ERAFLASH X does not require any special sample preparation, and filling and cleaning of the small sample cup is completed in a matter of seconds. Practically no waste of potentially hazardous materials is generated, which leads to significantly lower costs per measurement.

Measurement Procedure

Just four easy steps are required for a safe flash point testing at maximum precision:

• Enter sample ID and operator name
• Select the measurement standard and add additional parameters (e.g. expected flash point)
• Fill the sample cup with sample, place the sample cup inside the measurement chamber, and close the door
• Press the RUN button

The instrument now visualizes the measurement procedure on the screen showing the sample and oven temperature as well as pressure gauge displaying the pressure increase after ignition. After the measurement the flash point temperature is corrected for the atmospheric pressure and rounded to the next 0.5 °C. The result will be saved in the corresponding result file.

Test Methods

ASTM D7094, IP 620

Fuel Specifications

ASTM D396, D975, D2880, D3699, D7467

PBT - Peltier Boost Technology®

High speed heating and cooling

CPT - Contamination Prevention Technology™

Advanced electrode protection and self-cleaning ignition system to minimize cleaning and maintenance

QuickCal™

In-situ calibration with eralytics unique calibration cups without the need of dismantling the instrument

Fuel Dilution Program

Automatic fuel dilution measurement for the analysis of used engine oils

Temperature Range

18 °C to 370 °C (64 °F to 689 °F)

Temperature Stability

0.1 °C (0.2 °F)

Turnaround Time

up to 5 tests per hour

Sample Volume

2 mL

Reproducibility

R = 3.2 °C for diesel fuel at 60 °C (ASTM D93: R = 4.3 °C)
R = 5.6 °C for lube oil at 200 °C (ASTM D93: R = 14.2 °C)

Result Database

Over 100 000 detailed test reports stored

PC Software

ERASOFT RCS - Windows® software for convenient data transfer and result analysis

Remote Control

Remote service capability via Ethernet

Interfaces

Built-in PC with Ethernet, USB, and RS232 interfaces, Wi-Fi via USB dongle
Direct LIMS connectivity via LAN and output to printer or PC

Display

Industry proven 5.7“ multilingual color touchscreen

Languages

English, German, French, Spanish, Japanese, Chinese; additional langages available upon request

Power Requirements

Auto-switching 85 - 264 V, AC 47 - 63 Hz, max 150 W, Field application: optional 12 V DC adapter

Operating Conditions

Temperature range 10°C to 40°C, Humidity up to 90% RH, non-condensing

Dimensions & Weight

W x D x H = 19.6 x 20.4 x 31.7 cm (7.7 x 8.0 x 12.5 in); 7.2 kg (15.9 lbs)
