Arktis - Model FPG -Flat Panel Gamma Detector

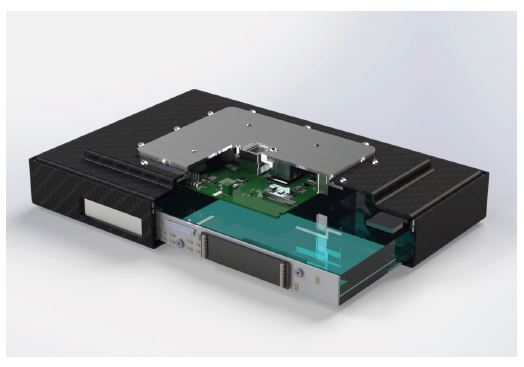

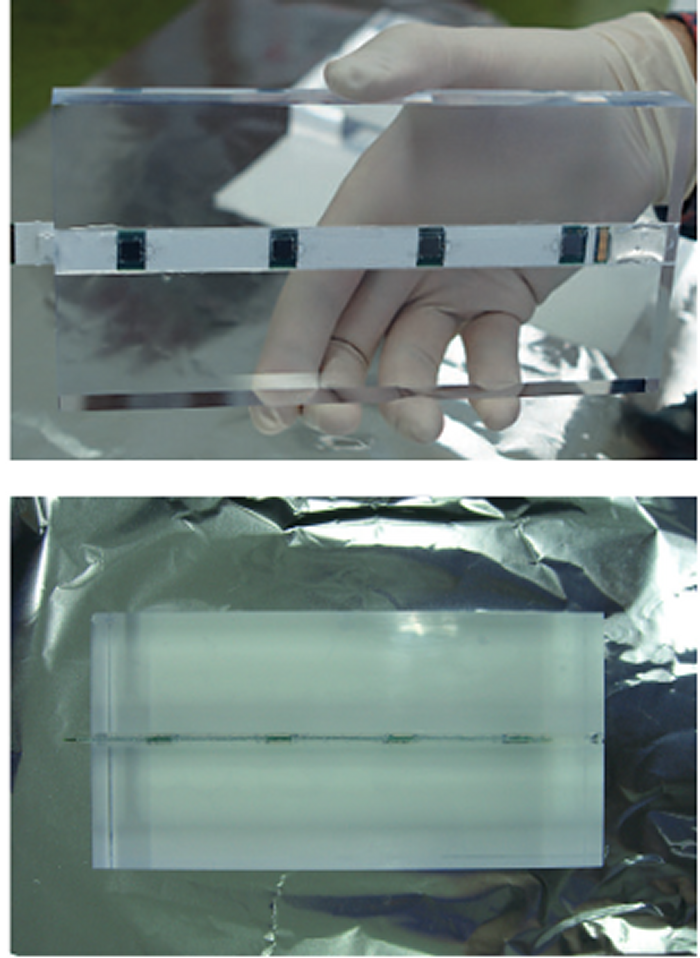

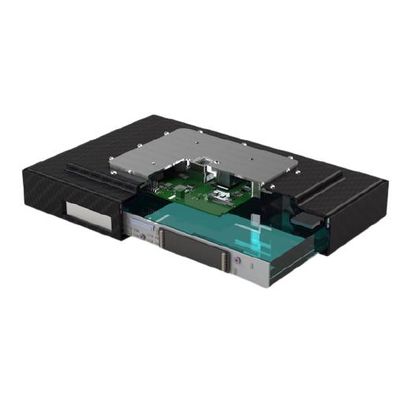

Thin, compact gamma radiation detector Spectral distinction of isotopes Plug & play Power-over-Ethernet connectivity Highest sensitivity per weight Position sensitive when tiled. Chip-based, large area gamma radiation detector. Arktis’ Flat Panel Gamma (FPG) detectors are compact and robust, easy to integrate radiation detectors. They use Silicon Photomultiplier SiPM chips and dedicated electronics to provide a powerful detector; insignificantly larger than the scintillator tile itself. The FPG’s Ethernet connectivity and high interoperability make it easy and cost effective to integrate into x-ray systems and body scanners, upgrading these to reliably detect radiological threats.
- Thin, compact tiles
- Easy integration via Ethernet (PoE)
- Operate even in high electromagnetic backgrounds
- Spectroscopic source discrimination
- Low power consumption
- Not sensitive to shock or vibration

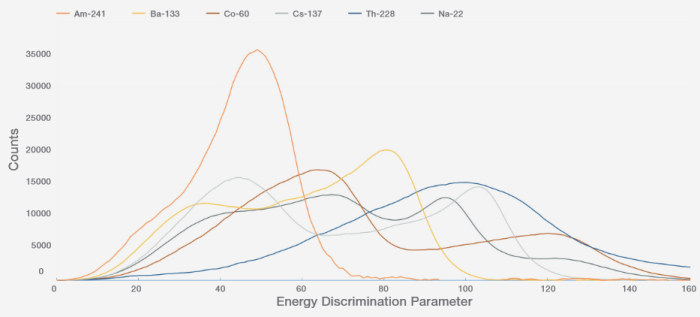

FPG technology allows isotope discrimination. The plot above shows the FPG’s clear distinguishability of the isotopes Co-60, Cs-137, Na-22 and Co-60 by means of the energy discrimination parameter developed by Arktis.
