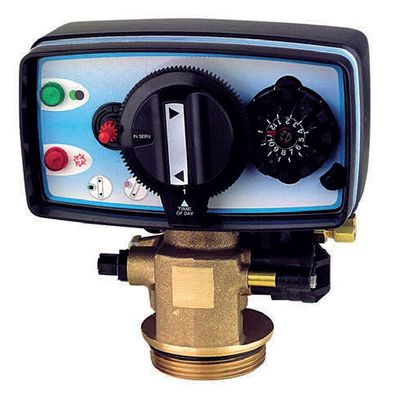

Hytek - Model 5600 -Fleck Valves
FromHytek S.r.l.
Valve material: Noryl. Inlet / outlet: 1” or 3/4” BSP. Flow rate (3,5 bar inlet) valve alone. Continuous (1 bar drop): 4,5 m3/h. Peak (1,8 bar drop): 5,9 m3/h. Cv *: 5,2. Maximum backwash (1,8 bar drop): 1,6 m3/h.
Most popular related searches
2011/65/EC regulations
RoHS regulations
fleck valve
drain lining
water softener
drain line
water softening
tank water softener
backwash
air valve
Downflow regeneration
- Adjustable cycles: Brine refill
- Time available: 180 Minutes
Dimensions
- Distributor pilot: 26,7 mm ( 1” )
- Drain line: 1/2”
- Brine line: 3/8”
- Mounting base: 2 1/2’’ - 8 NPSM
- Height (from the top of tank): 180 mm
- Tank size application
- Water softener: 6” - 12” (150 - 300 mm)
- Filter: 6” - 10” (150 - 250 mm)
- Electrical rate: 230V - 50Hz, other upon request
Pressure
- Hydrostatic: 20 bar
- Working: 1,4 to 8,5 bar
- Working temperature: 1 to 43°C
Meter
- Accuracy range (-/+ 5%): 1l/min - 57 l/min
- Capacity range: Standard 0,5 - 8 m3
- Extended 2,5 - 40 m3
Regeneration cycles
Downflow
- Preliminary rinse (Downflow)
- Backwash (Upflow)
- Brine & slow rinse (Downflow)
- Rapid rinse (Upflow)
- Setting rinse (Downflow)
- Brine refill
- Service
Options
- FK0122 & FK0123: Fast regeneration (90 min)
- FK2040: immediate regeneration
- 60067-03: 2310 SBV security brine valve no air check
- By pass valve
- Filter valve
- Hot water: 65°C eco / 82°C chrono
Certificates
- DM 174 DD April 06, 2004 compliance
- 2014/30/UE (EMC) Directive
- 2014/35/UE Low tension
- 2011/65/EC (RoHS) directive
- Machine Directive 2006/42/EC
