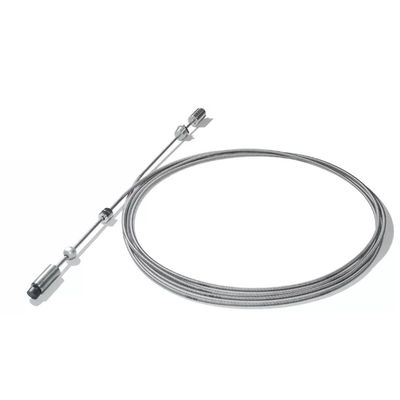

FAFNIR VISY-Stick Flex - Flexible Magnetostrictive Sensor
The flexible magnetostrictive sensor for Tall Tanks. The VISY Stick-Flex flexible magnetostrictive sensor is a practical and cost effective solution for accurately monitoring above ground fuel storage tall tanks with heights of up to 22 meters. Used together with any of FAFNIR’s leading VISY-Command control units, all wet stock management and inventory control requirements can be automated, allowing efficient management both on site and in the headquarter. Simple & Cost-Effective Installation: The sensors corrugated hose is stretched by a weight and a magnet which affixes itself at the bottom of the tank. Tried & Tested: VISY-Stick Flex systems offers high accuracy tank level measurement. They are ideal for fuel, depots.
- Tank Storage Horizontal Tank
- Tank Storage Vertical
- Tank Storage Container Tank
A Solution for the Most Complex Installation:
- Digital magnetostrictive measurement technology
- Consistently accurate fuel level monitoring
- Temperature compensated volumes
- Automatic delivery detection
- User programmable in-tank alarms
- Water detection option
- Probe length up to 22 m
- Flexible construction for easy transportation and installation
- Equipment Type: Automatic tank gauge, Continuous level sensor, Dry run protection
- Liquid: Diesel / Heating Oil, Petrol, Oil
- Vessel: Underground Storage Tank, Overground Storage Tank, Bulk Tank, Oil Separator, Tank Sump
- Measuring range: 1 000.00 mm up to 22 000.00 mm
- Temperature: -40.00 °C up to 85.00 °C
- Certification: ATEX, IECEx, Ex i
- Additional criteria: Offers extra-high accuracy, For low ceiling height
