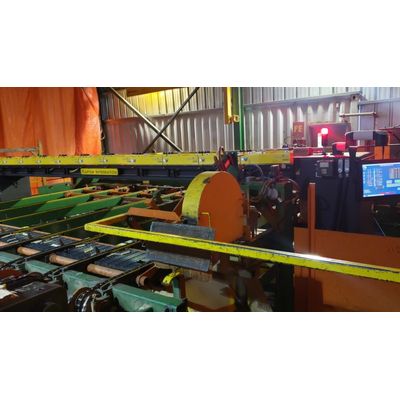

FlitchScanner - Model FX85 - E -Edger Optimizer Machine
Transverse and lineal scanning, optimization, and controls for the edger. The FlitchScanner produces the highest value untrimmed boards from a flitch at the edging machine center. The system supports configurations for both transverse and linear infeed. High-density 3D modelling enables the optimization logic to identify the smallest of geometric defects, even rot. Multiple scan zones are supported on lineal infeeds to minimize the system`s mechanical footprint.
Most popular related searches
- Board set-up that matches Raptor’s trimmer optimization
- Run full trim logic in each saw gap
- Configurations available for transverse or lineal feed systems
- Supports multiple saw clusters, variable pocket sizes and top chip head
- Balances the use of saws and tailers for even wear
- Intuitive results screen with 3D graphics and critical solution information
- Quick access to solution diagnostics with graphical tools for analysis
- Browser-based user interface. Accessible by tablet or any connected device
- Simulation mode allows user to manually change configuration variables to simulate results and provide in-depth analysis
- Comprehensive reporting package
- Sensors (transverse scan): Laser dot (visible) sensors at .333” @3 kHz or 1” spacing @2 kHz
- Sensors (lineal scan): Line laser (visible), scanning up to 5,000 Hz
- Operating System: Windows 10
- Data Storage: SQL Server
- PLC Interface: ControlLogix
