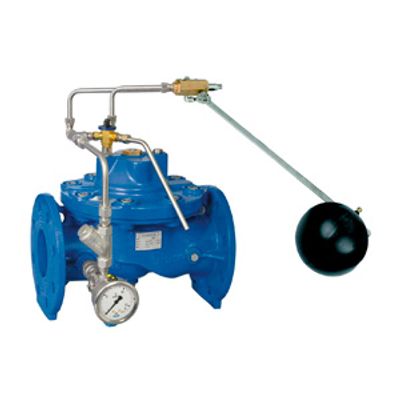

Hydromodul - Model HM-GAD -Float Control Valve
FromTecnidro Srl
The valve controls tanks and reservoirs emptying and avoids overflow. The valve operates by means of a differential hydraulic float complete with regulating levels mounted on the tank side. The float maintains the valve closed and opens only when the minimum pre-set level is reached. Once the valve is open, float allows tank inlet until maximum water level is reached again.
Most popular related searches
fire protection system
float control valve
control valve
water supply
float valve
hydraulic profile
hydraulic profiler
valve operator
swimming pool
waterworks valve
- Controlled maintaining of constant water level in tanks and reservoirs.
- water supply and distribution
- fire protection systems
- water treatment
- fuel stock plants
- water supply stations (airports, marine and fluvial ports)
- sport centers (swimming pools, aquariums, amusement parks)
- pump stations
- simple structuration, compactedness and easy disassembly
- head loss and cavitation risks reduction
- special hydraulic profile
- excellent corrosion strenght
- conformity with both European and American standards
- easy installation
- multiple function, V-PORT plug option
- perfect seal
- high hydrodynamic section globe body, without stagnation pockets
- standard ductile cast iron casting
- epoxy-polyester resin powder painting
- entirely guided travel seal disc
- standard stainless steel seal seat with cavitation risks reduction
- open pass no less than 80% of nominal diameter
- optional V-PORT seal disc
- stainless steel exagonal heads bolts
- wax sealing on request
- stainless steel shaft, seal disc, spacer and return spring
- reinforced NBR diaphragm
- on request Viton diaphragm
- easy maintenance and access to internal parts without removing the valve from the pipeline
- purchased valve function can easly be changed with simple pilot circuit modifications
