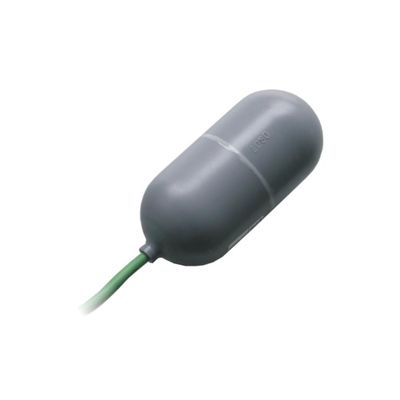

NIVUS - Model Type TA - FMO -Float Level Switch

• Easy to install
• Cost-efficient
• Suitable for any installation position
• No response delay
• Maintenance-free
• Reliable
• High switching capacity
• Ex approval for Zone 1
• according to ATEX (optional)

General Description

The switch can be used e. g. as minimum, maximum, filling, emptying contact as well as for protection against overflow or idle running. It can be installed directly in tanks using a screw joint or can be inserted into open tanks from the top. If inserted from the top, the switching point is determined by using a ballast weight. The float switch enclosure is made of robust plastic material. The micro switch is encapsulated completely water-tight. Moreover the unit consists of several air chambers. Therefore it is almost unsinkable even if damaged mechanically.

• Dry run protection for pump controls
• Min. or max. alarm
• Filling and draining control
• Emergency shutdown
• Redundant measurements for other systems
• Extra messages
• Activation of other metering systems
• and many more

Common

• Cable:
• Length: 5 m, 10 m and 20 m
• Material: Butyl rubber
• Type: high-flexible, 3 x 0.75²
• Installation Position: any
• Change over contact: 65°
• Enclosure:
• Material: ABS
• Weight: 345 g
• Ballast Weight: 300 g (the float switch standard supply always includes a ballast weight)
• Protection: IP 68
• Buoyancy: 0,5
• Ex-Approval: II 2 G Ex ib IIB T4
• Operating temperature: -5 °C bis +60 °C
• Storage temperature: -10 °C bis +70 °C
• Output: 1 potentialfreier Wechselkontakt, belastbar bis 230 V AC / 5 A (Ex: 0,2A bei max. 30 V)
